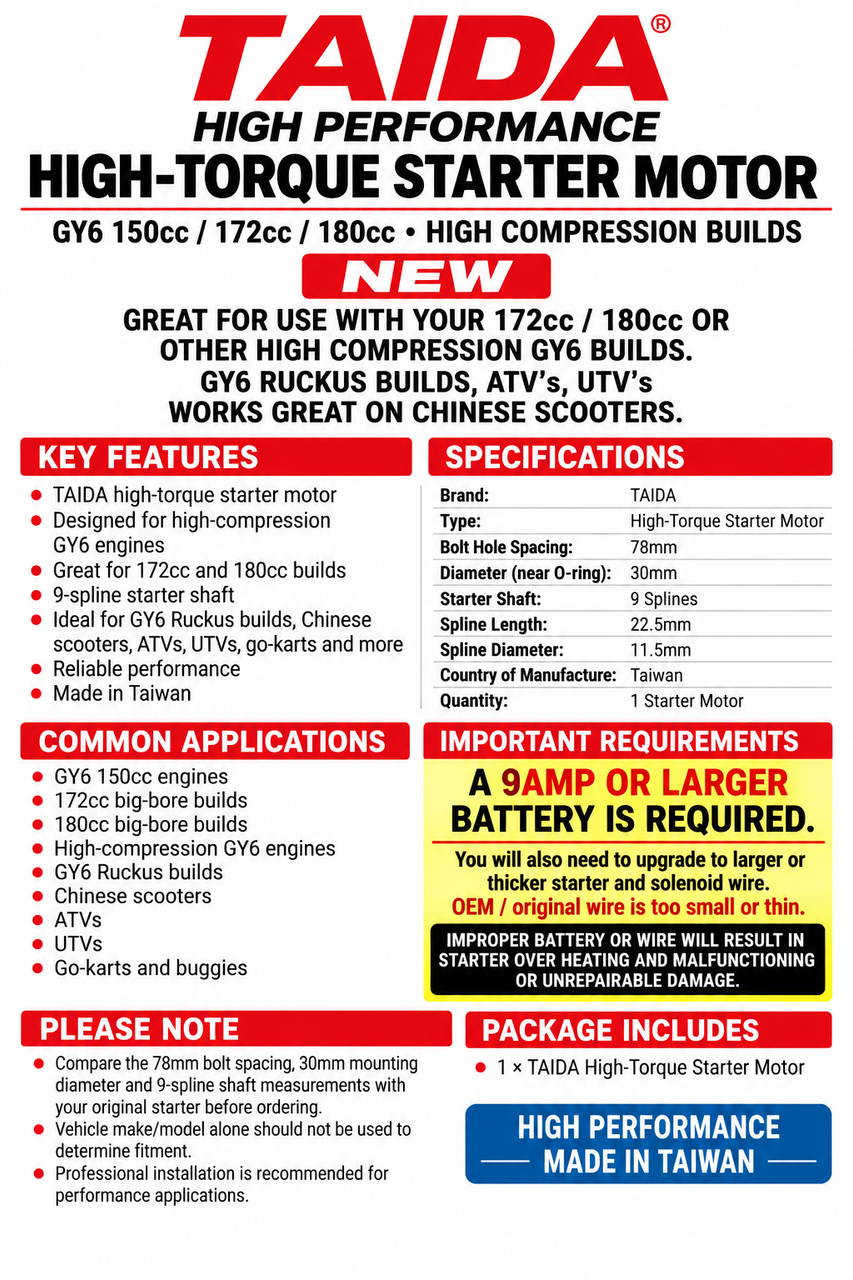

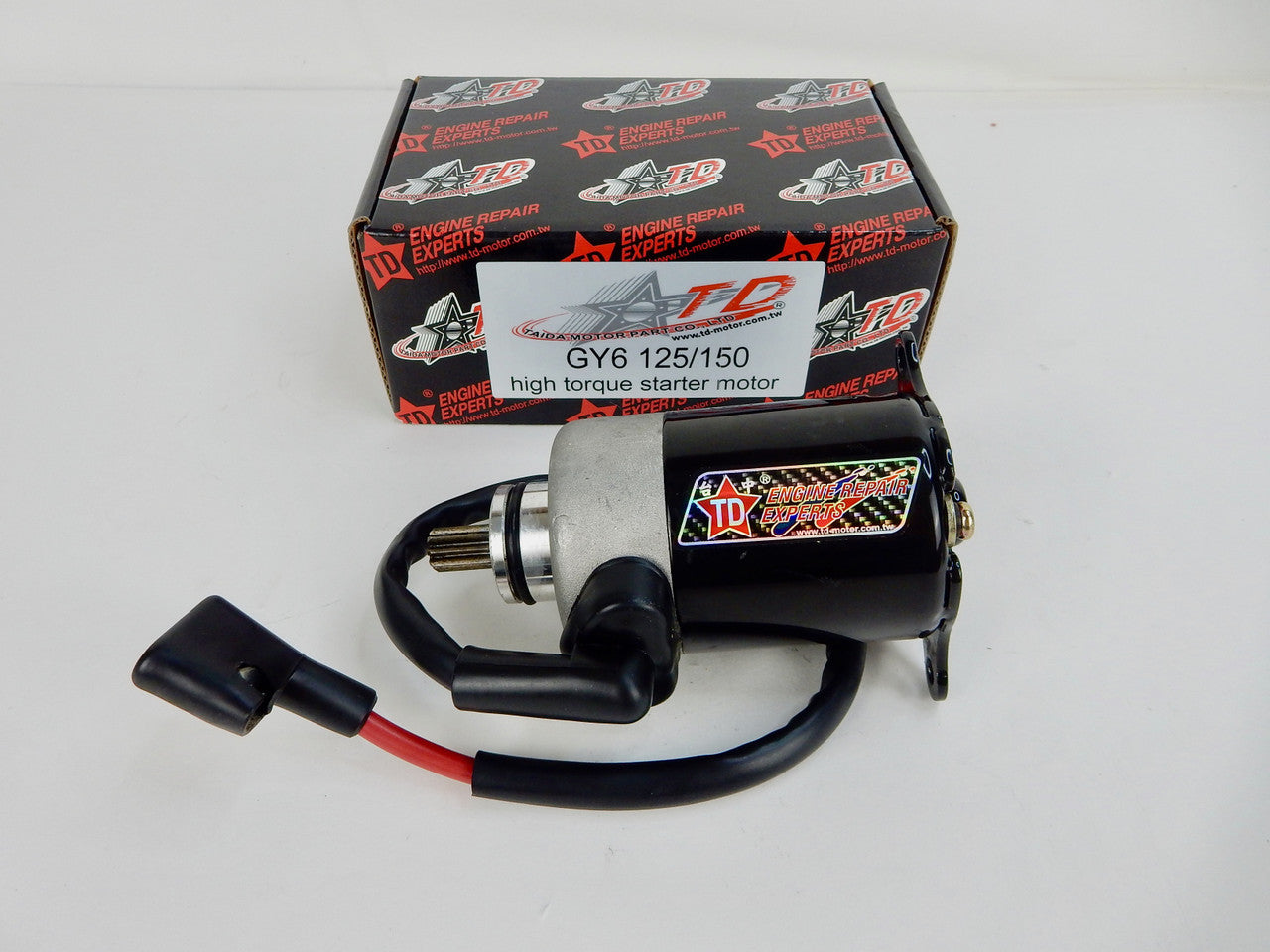

TAIDA HIGH PERFORMANCE HIGH-TORQUE STARTER MOTOR
GY6 150cc / 172cc / 180cc • HIGH-COMPRESSION BUILDS

Upgrade your GY6 starting system with this TAIDA High-Torque Starter Motor, designed for performance and high-compression engines that can be difficult for a standard starter to crank.

A great choice for 172cc, 180cc and other high-compression GY6 builds, including compatible scooters, GY6 Ruckus builds, ATVs, UTVs, go-karts and other GY6-powered applications.

KEY FEATURES

• High-torque performance starter
• Designed for high-compression GY6 engines
• Excellent for 172cc and 180cc big-bore builds
• 9-spline starter shaft
• Heavy-duty performance application
• Made in Taiwan

SPECIFICATIONS

• Brand: TAIDA
• Type: High-Torque Starter Motor

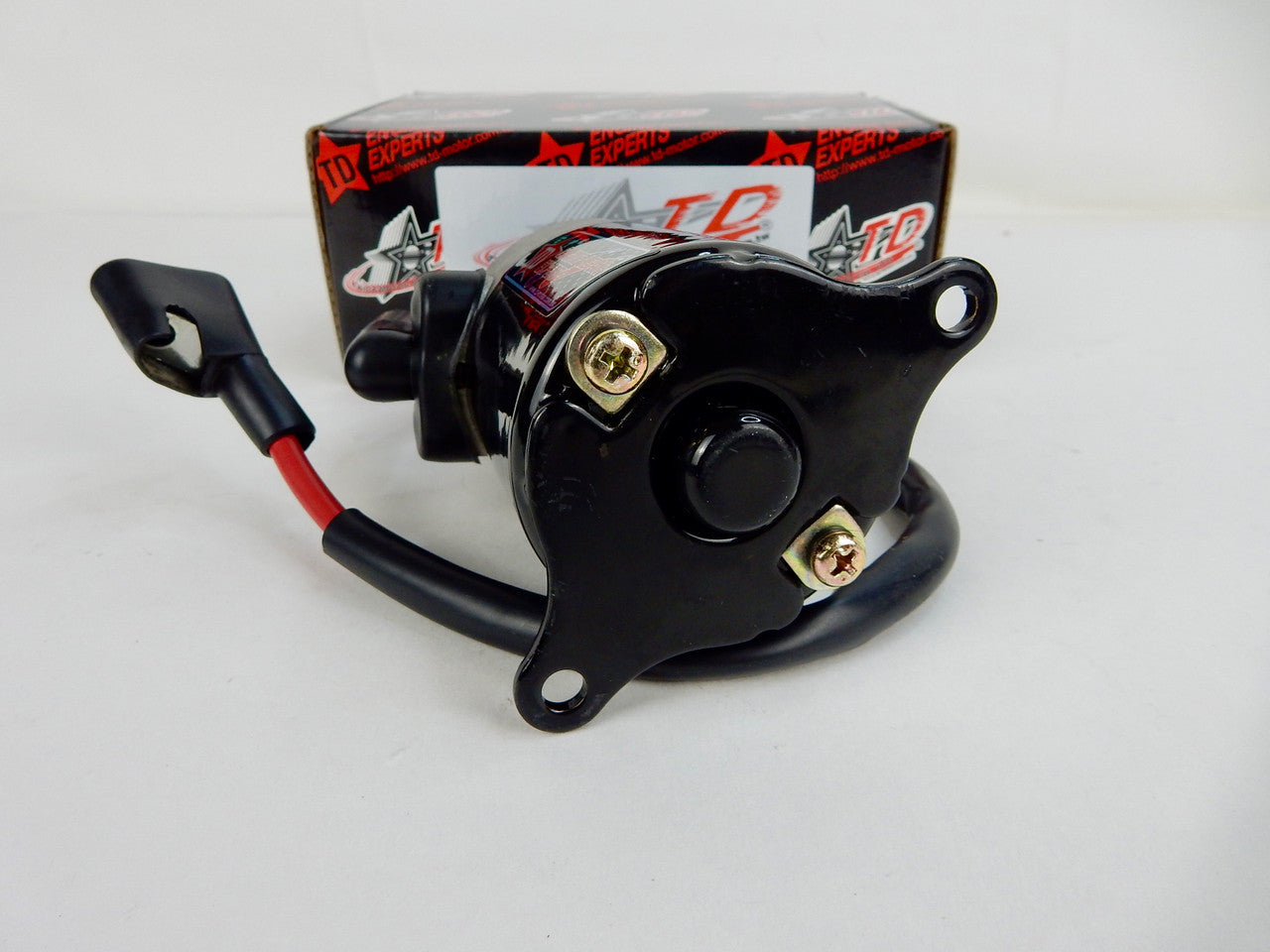

• Bolt Hole Spacing: 78mm
• Diameter Near O-Ring: 30mm

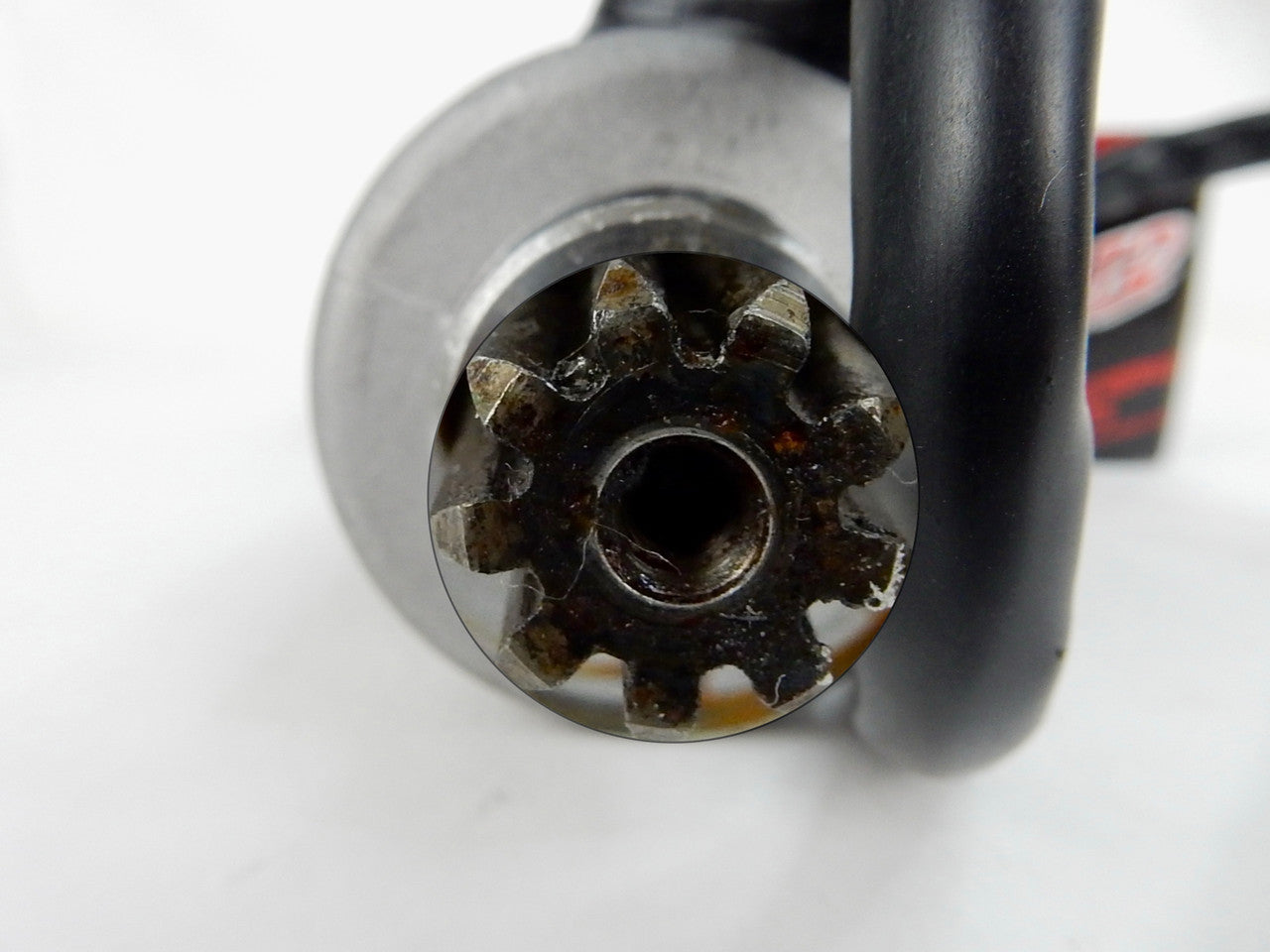

• Starter Shaft: 9 Splines
• Spline Length: 22.5mm
• Spline Diameter: 11.5mm
• Country of Manufacture: Taiwan
• Quantity: 1 Starter Motor

COMMON APPLICATIONS

Designed for compatible GY6 applications including:

• GY6 150cc engines
• 172cc big-bore builds
• 180cc big-bore builds
• High-compression GY6 engines
• GY6 Ruckus builds
• Chinese scooters
• ATVs
• UTVs
• Go-karts and buggies

IMPORTANT ELECTRICAL REQUIREMENTS

This high-torque starter requires an upgraded electrical system to operate properly.

A 9Ah OR LARGER BATTERY IS REQUIRED.

The factory starter and starter-solenoid wiring may be too small for the increased current demand. Larger/heavier-gauge starter and solenoid wiring must be used where required.

Using an undersized battery or inadequate wiring can cause excessive resistance, voltage drop and starter overheating, potentially resulting in starter malfunction or permanent damage.

PLEASE NOTE

Compare the 78mm bolt spacing, 30mm mounting diameter and 9-spline shaft measurements with your original starter before ordering. Vehicle make/model alone should not be used to determine fitment.

Professional installation is recommended for performance applications.

PACKAGE INCLUDES

• 1 × TAIDA High-Torque Starter Motor

NEW • HIGH PERFORMANCE • MADE IN TAIWAN
