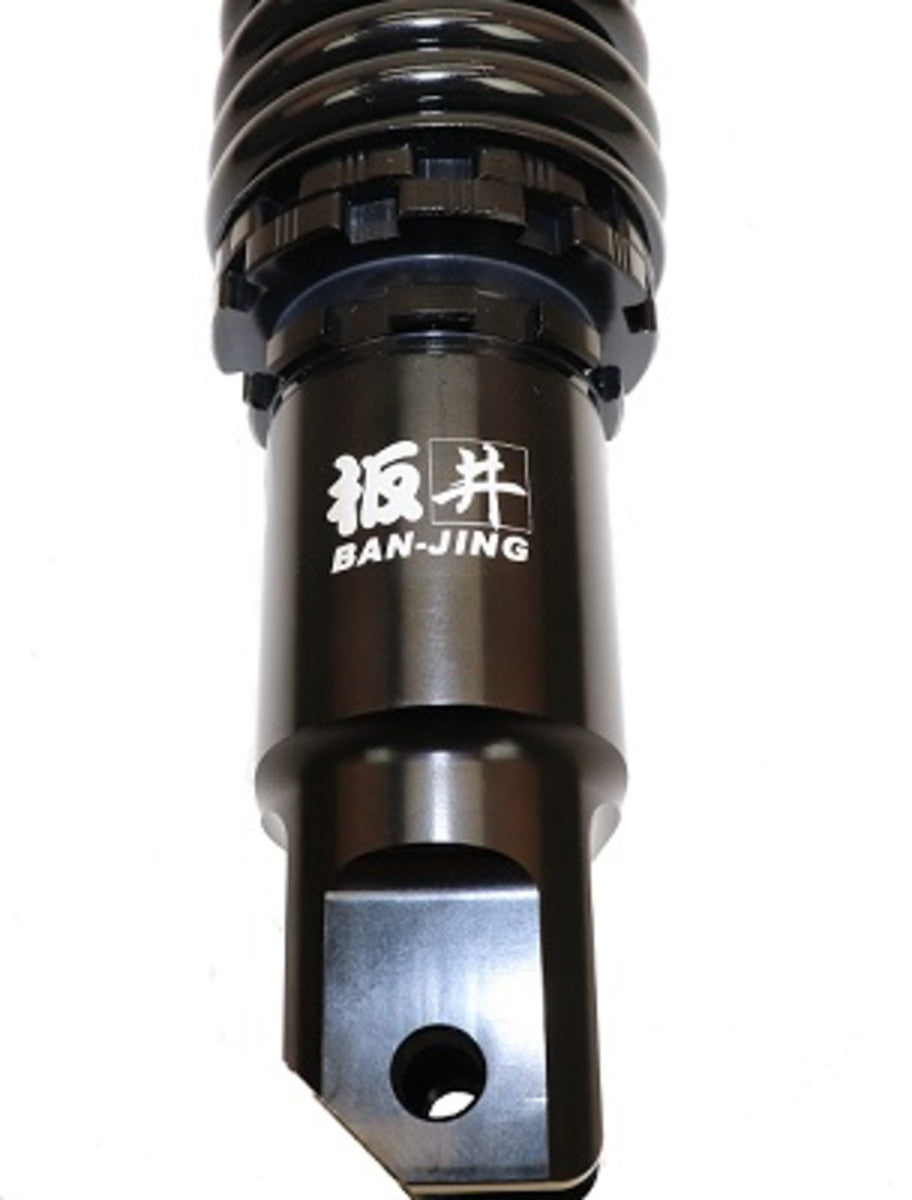

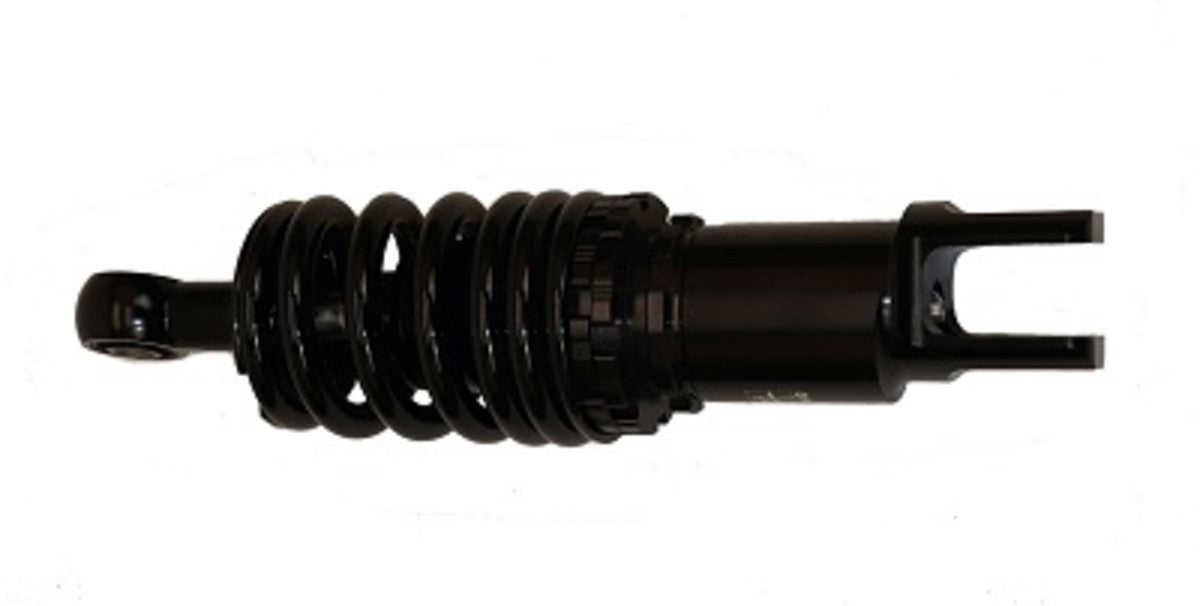

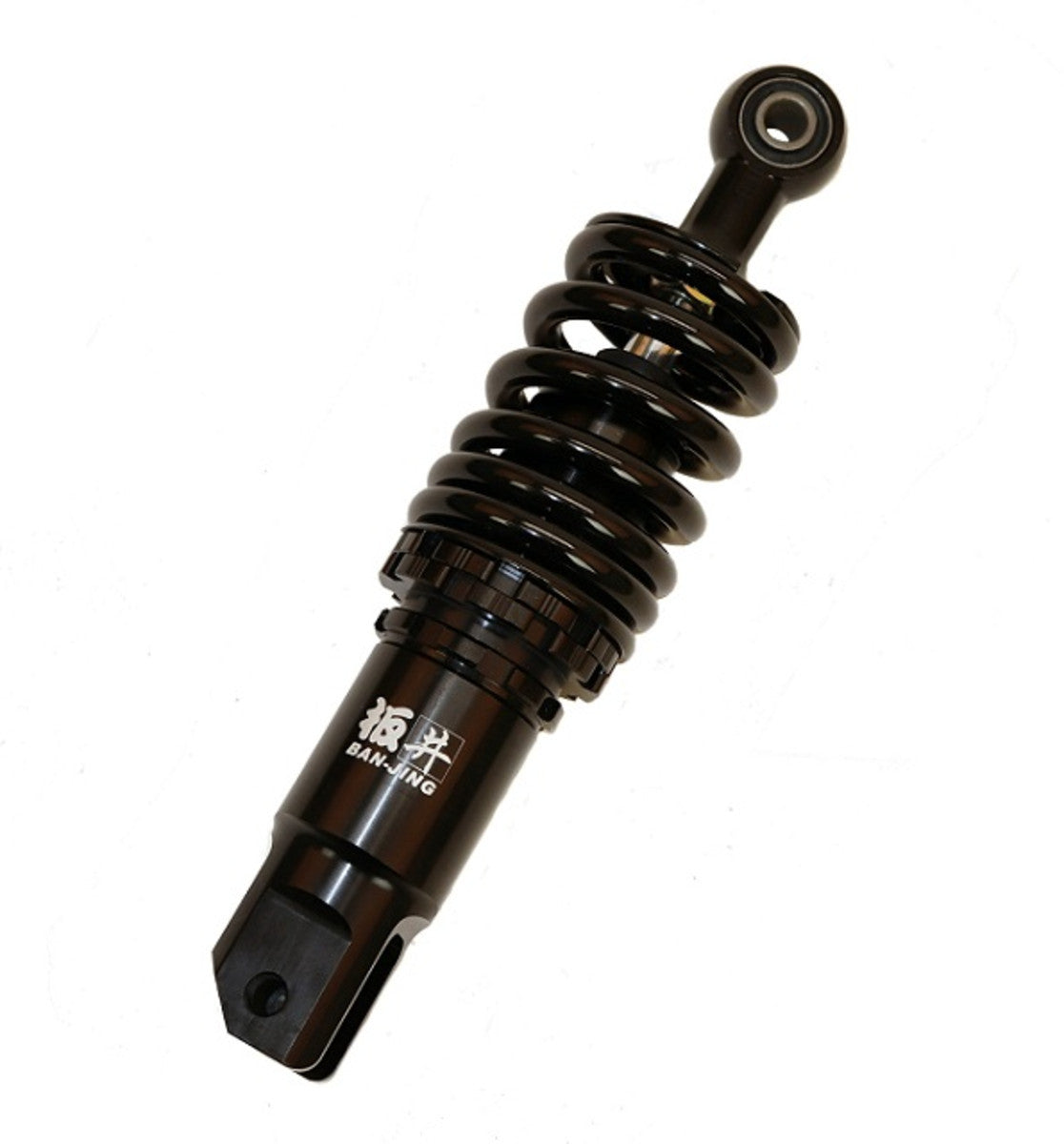

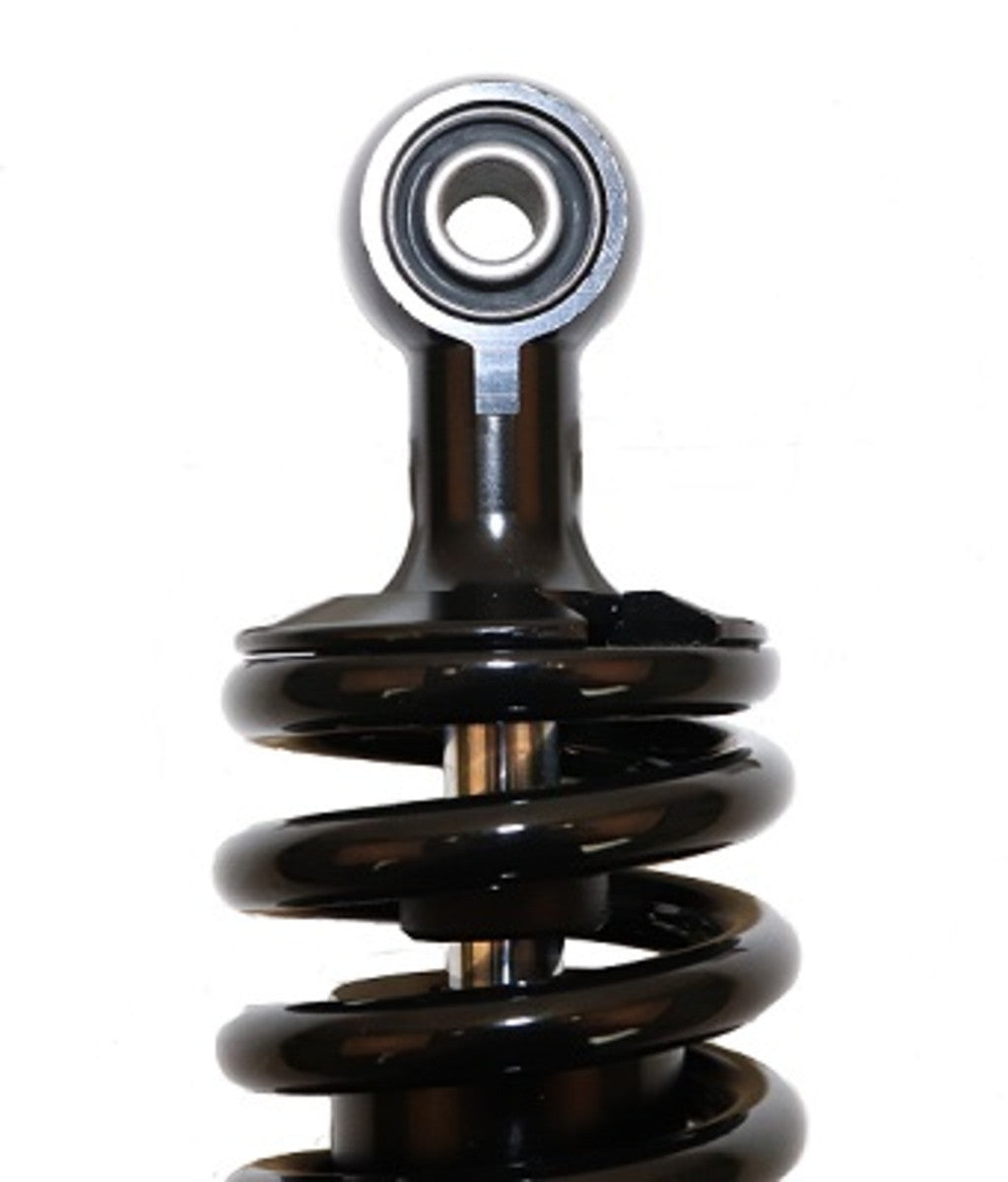

BAN-JING RUCKUS LOW DOWN SHOCK - 240mm
Weight:1.4 kg
169-525
BAN JING ADJUSTABLE PERFORMANCE SHOCK IN A BLACK ANODIZED FINISH FOR THE HONDA RUCKUS. INCLUDES A SPANNER WRENCH. THESE SHOCKS CAN ALSO BE USED ON HONDA ELITE, GENUINE BUDDY AND GY6 SCOOTERS ALTHOUGH THE SHACKLE MAY NEED TO BE REVERSED. THERE MAY BE CLEARANCE ISSUES ON THE RUCKUS FRAME IF THIS SHOCK IS NOT USED WITH A SHOCK ARM EXTENSION, PLEASE SEE SPECIFICATIONS TAB FOR MORE INFO. OVERALL LENGTH: 260MM (10.25") MOUNTING DISTANCE (EYE TO CLEVIS): 240MM (9.5") MOUNTING HOLE DIAMETER: 10MM THREAD SIZE: M8X1.25 ADJUSTABLE OFFSET SHACKLE WIDTH OF UPPER EYE MOUNT: 20MM HEIGHT OF UPPER EYE MOUNT: 55MM WIDTH OF SPRING: 60MM MADE IN TAIWAN
