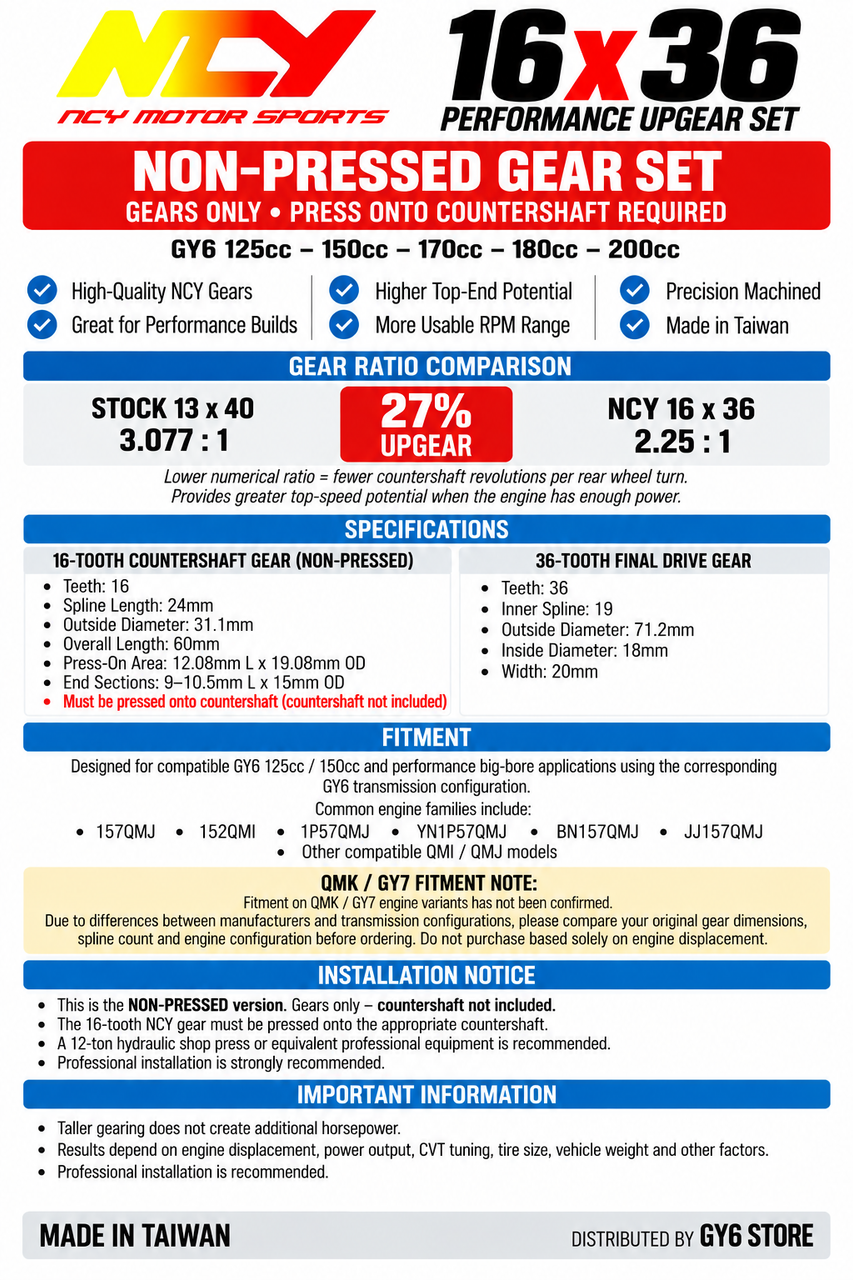

NCY 16×36 PERFORMANCE UPGEAR GEAR SET

STANDARD NON-PRESSED VERSION • GY6 125/150cc & BIG BORE

Get more usable gearing from your GY6 performance build with the NCY 16×36 final-drive upgear set.

The 16×36 combination produces a 2.25:1 gear ratio, compared with the commonly used stock 13×40 ratio of approximately 3.077:1. This represents approximately a 27% upgear and provides greater top-speed potential for engines with enough power to take advantage of the taller gearing.

PRODUCT DETAILS

• Brand: NCY
• Part Number: 1200-1166
• Gear Combination: 16×36
• Type: Performance Final Drive / Upgear Set
• Gear Ratio: 2.25:1
• Approx. 27% Upgear vs. 13×40 Stock Gearing
• Application: GY6 Performance / Big-Bore Engines
• Made in Taiwan

16-TOOTH COUNTERSHAFT GEAR

• Teeth: 16
• Spline Length: 24mm
• Outside Diameter: 31.1mm
• Overall Length: 60mm
• Press-On Area: 12.08mm L × 19.08mm OD
• End Sections: Approx. 9–10.5mm L × 15mm OD

36-TOOTH FINAL DRIVE GEAR

• Teeth: 36
• Inner Spline: 19
• Outside Diameter: 71.2mm
• Inside Diameter: 18mm
• Width: 20mm

PERFORMANCE BENEFITS

• Taller final-drive gearing
• Increased top-speed potential
• Reduced engine RPM at a given road speed compared with stock gearing
• Helps utilize the additional power of big-bore and modified engines
• Excellent upgrade for properly tuned performance GY6 builds

FITMENT

Designed for compatible GY6 125cc / 150cc and performance big-bore applications using the corresponding GY6 transmission configuration.

Common engine families include:

• 157QMJ
• 152QMI
• 1P57QMJ
• YN1P57QMJ
• BN157QMJ
• JJ157QMJ
• Other compatible QMI / QMJ configurations

QMK / GY7 FITMENT NOTE

Fitment on QMK / GY7 engine variants has not been confirmed.

Due to differences between manufacturers and transmission configurations, please compare your original gear dimensions, spline count and engine configuration before ordering.

Do not purchase based solely on engine displacement.

INSTALLATION NOTICE

THIS IS THE NON-PRESSED VERSION.

The 16-tooth NCY gear must be pressed onto the appropriate countershaft before installation.

The original countershaft gear must first be removed and the new NCY 16-tooth gear properly pressed into position.

Access to a 12-ton hydraulic shop press or equivalent professional equipment is recommended.

Professional installation is strongly recommended if you do not have experience pressing transmission gears.

IMPORTANT

Upgearing does not create additional horsepower. Your engine must produce enough power to effectively pull the taller gearing.

Performance will vary depending on engine displacement, modifications, CVT setup, tire size, vehicle weight and other factors.

CONDITION

NEW

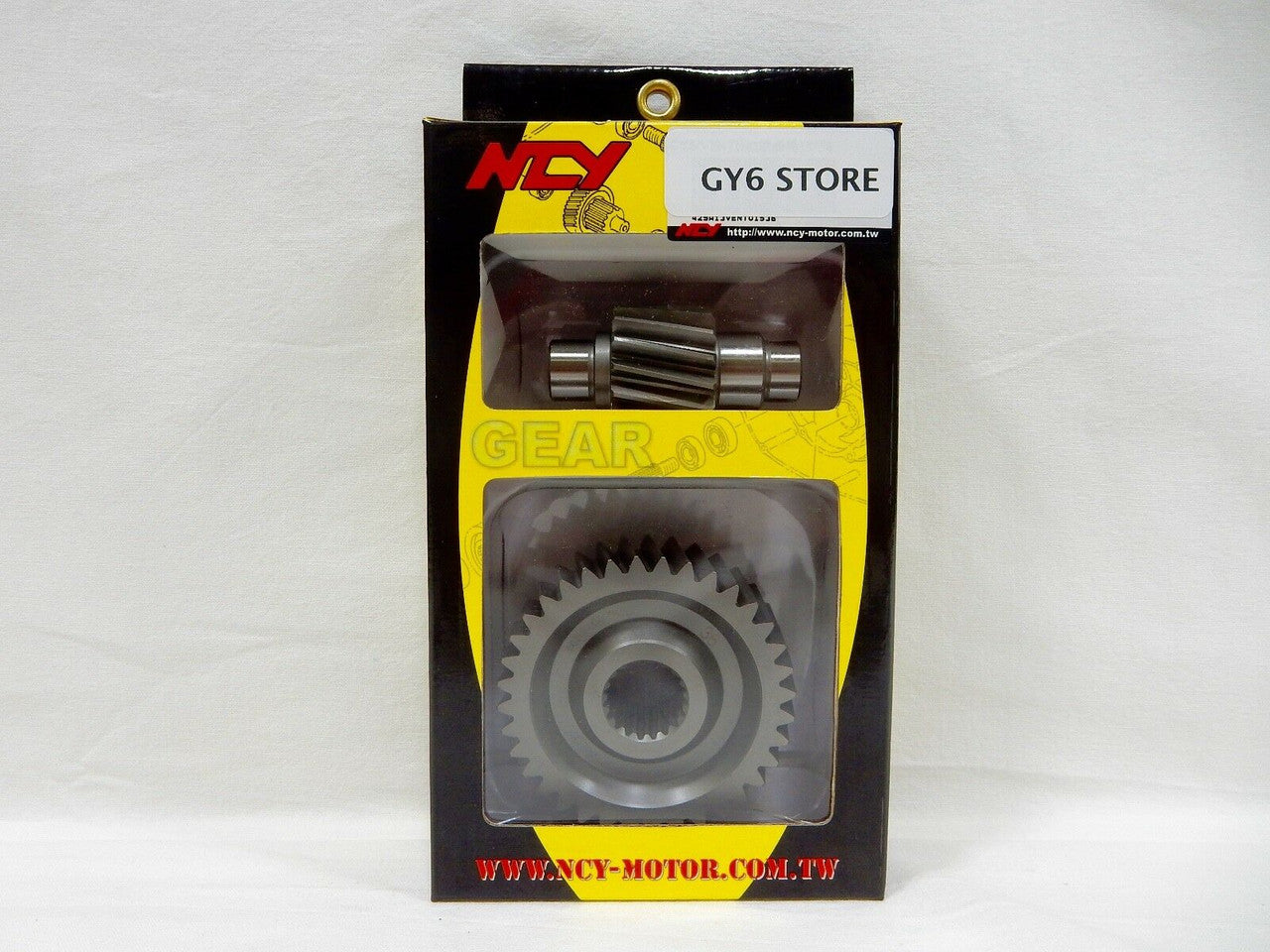

PACKAGE CONTENTS

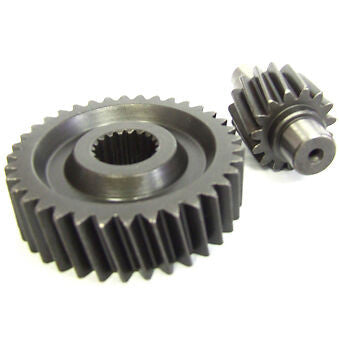

• 1 × NCY 16-Tooth Countershaft Gear
• 1 × NCY 36-Tooth Final Drive Gear

COUNTERSHAFT NOT INCLUDED • GEARS ARE NOT PRE-PRESSED

Made in Taiwan
