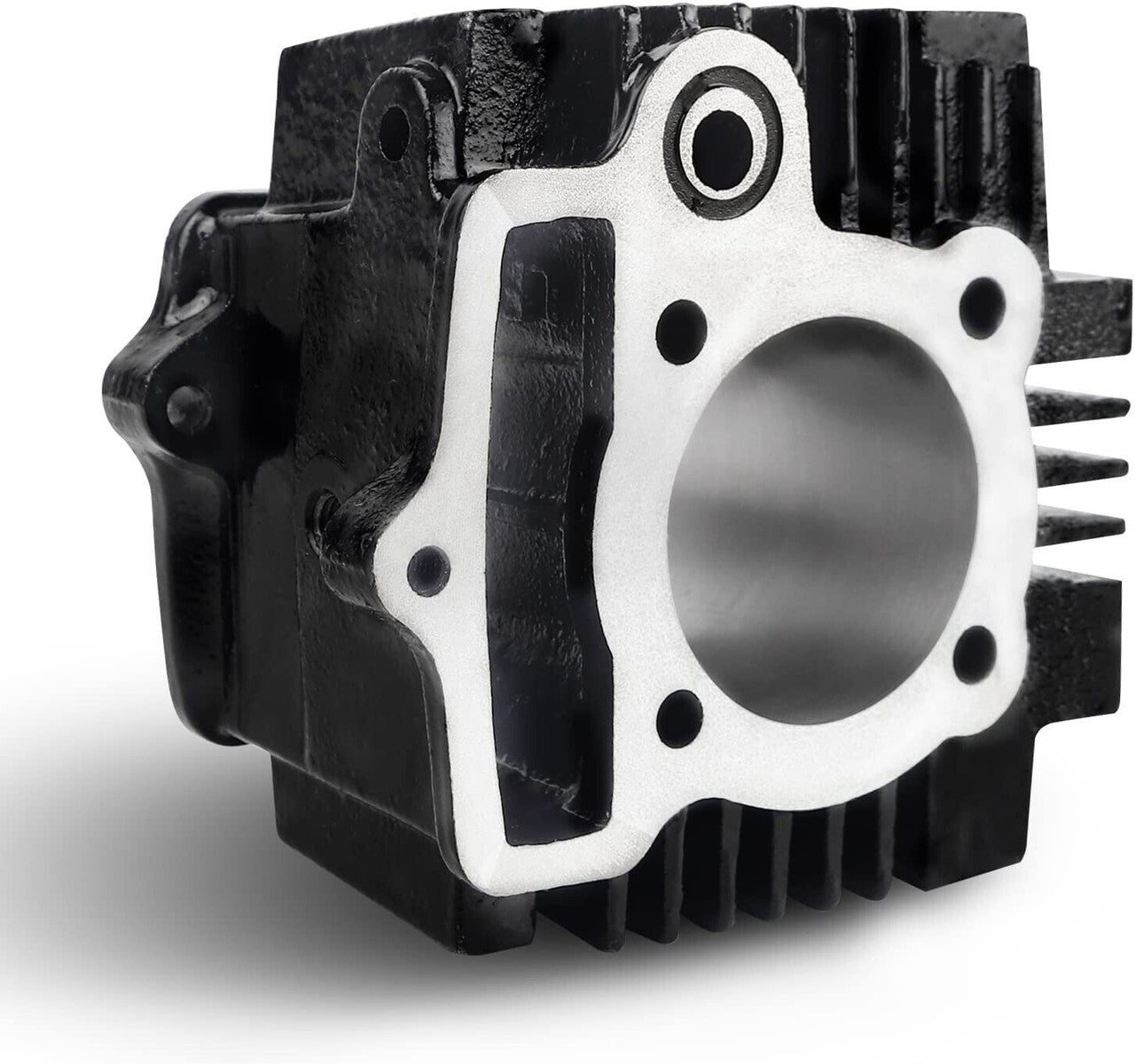

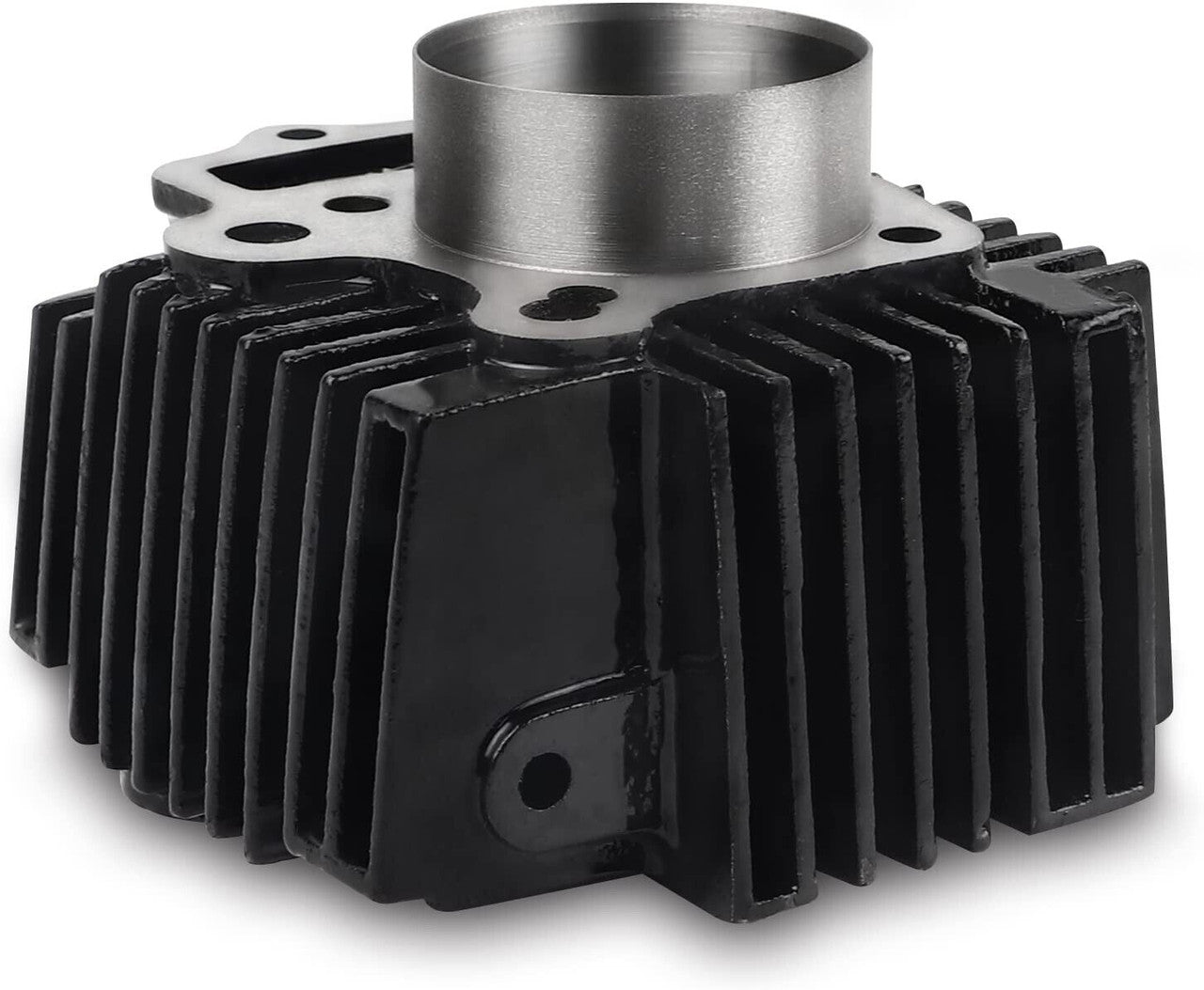

125cc (54mm BORE) HORIZONTAL HONDA STYLE CYLINDER KIT TAO COOLSTER ECT
Weight:3.2 kg
290-258

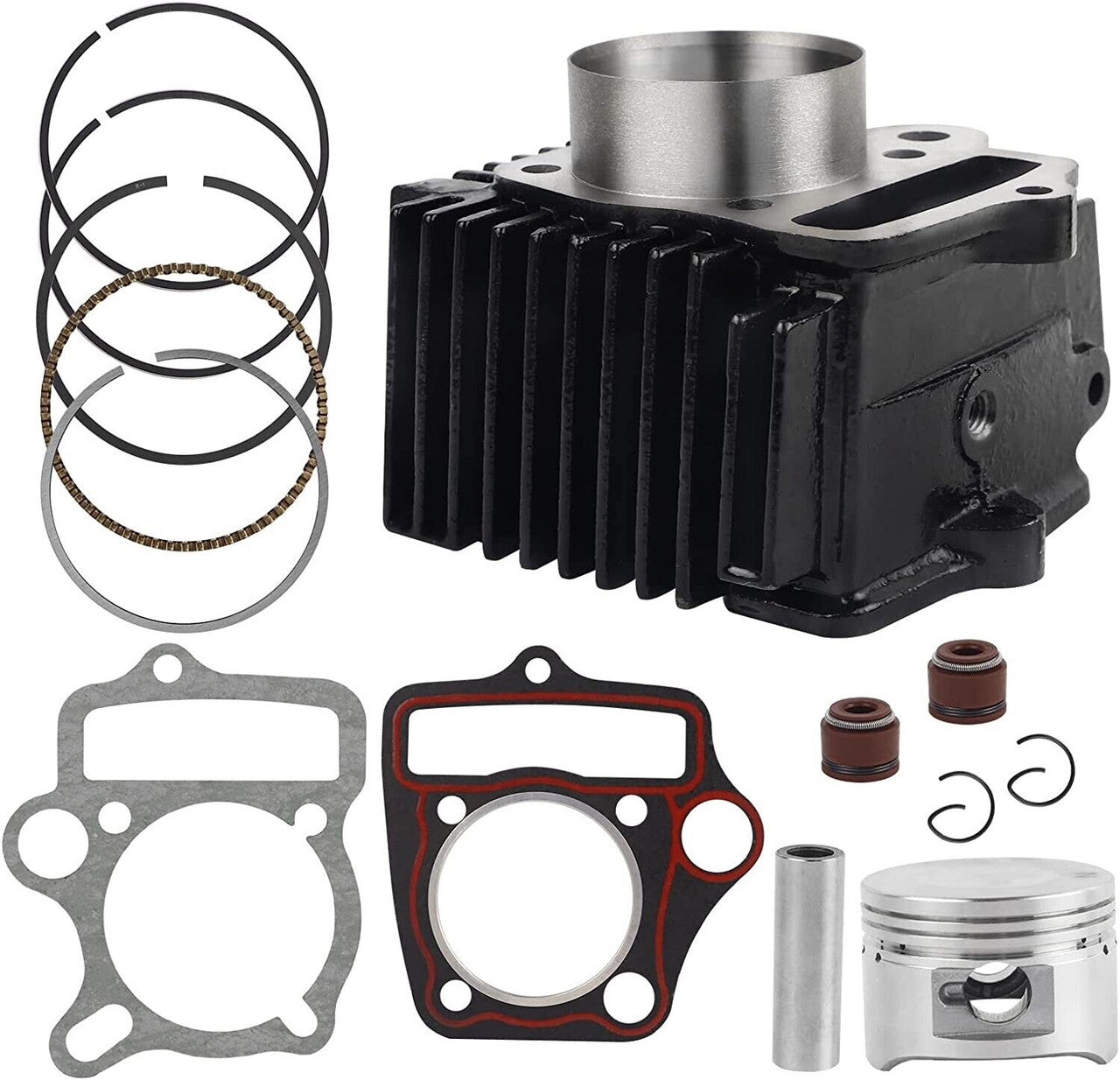

HORIZONTAL HONDA STYLE 4-STROKE CYLINDER KIT KIT INCLUDES COMPLETE CYLINDER HEAD, CYLINDER, PISTON, RINGS, PISTON PIN, CIR CLIPS, HEAD GASKET, AND BASE GASKET. PLEASE NOTE: NOT ALL 125CC CHINESE BIKES COME WITH 125CC MOTORS SOME COME WITH 52.4MM (110CC) MOTORS. PLEASE BE SURE TO COMPARE MEASUREMENTS BEFORE PURCHASING THIS KIT 125CC CYLINDER BORE: 54MM 125CC CYLINDER STUD SPACING DIAGNAL: 69.5MM CYLINDER MEASUREMENT: BORE: 54MM BOLT HOLE SPACING CENTER TO CENTER: 48MM X 50MM PISTON KIT MEASUREMENT: PISTON HEIGHT: 37MM PISTON DIAMETER: 54MM PISTON PIN LENGTH: 41.6MM PISTON PIN DIAMETER: 13MM BORE: 54MM OVERALL HEIGHT: 95MM CYLINDER SLEEVE OUTER DIAMETER: 56MM CYLINDER STUD SPACING (DIAGONAL): 68MM
