BANDO CVT DRIVE BELT 669-18-30 *FOR 50cc QMB139 SHORT CASE MOTOR 10' WHEEL*
Weight:0.25 kg

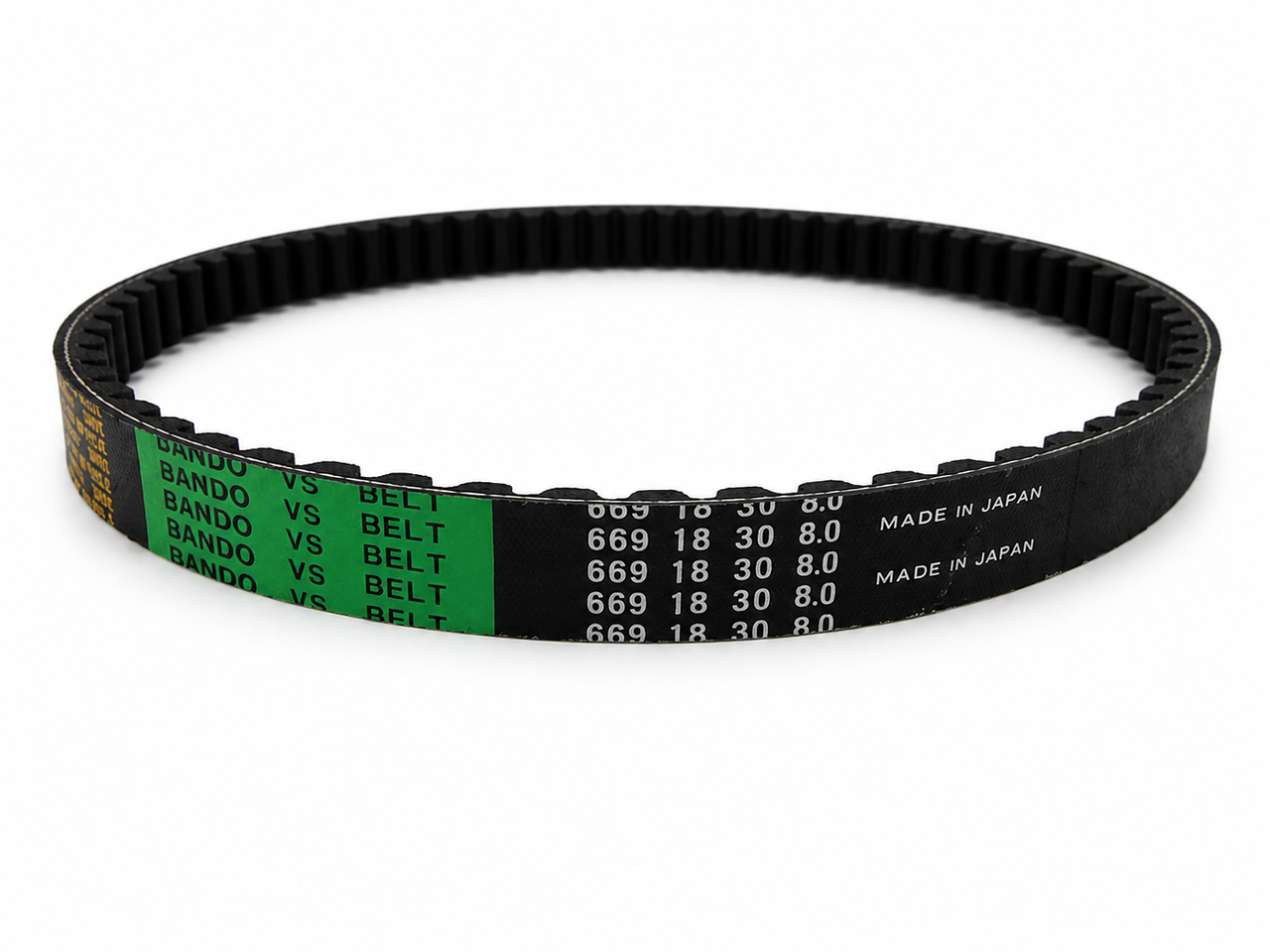

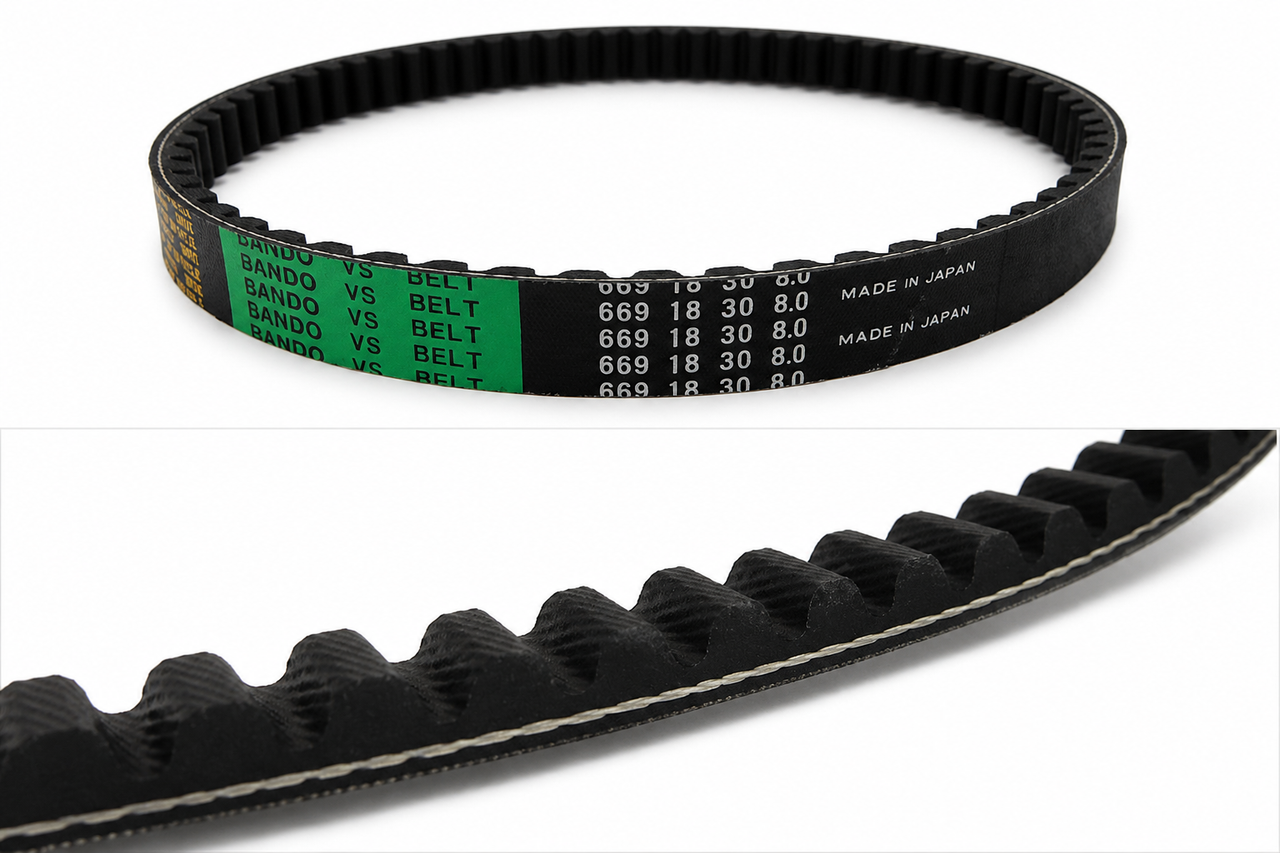

BAN669Keep your automatic scooter shifting smoothly and efficiently with the premium Bando 669x18x30 High-Performance CVT Drive Belt. Manufactured in Japan to demanding OEM criteria, this continuous variable transmission belt is engineered specifically for 49cc/50cc 4-stroke QMB139 engines utilizing a short-case configuration with a 10-inch rear wheel layout.
Shop mechanics widely recognize Bando belts as the absolute gold standard for scooter transmissions. Constructed with high-modulus internal synthetic rubber compounds and high-tensile cords, this belt resists heat stretching and structural deformation under continuous high-RPM loads, delivering maximum power transfer from your front variator to the rear clutch pulley setup with zero rotational slip.
Product Features
- Premium Japanese Manufacturing: Engineered by Bando to exact factory replacement standards for consistent geometry and long-term durability.
- High-Tensile Cord Reinforcement: Minimizes longitudinal stretching and decay under high thermal loads within the CVT transmission case.
Technical Specifications
- Belt Sizing Metric: 669-18-30
- Total Outer Length: 669mm
- Top Width Profile: 18mm
- Drive Face Seating Angle: 30 Degrees
- Total Belt Thickness: 8mm
Comprehensive Model Fitment Matrix
This 669mm CVT drive belt is a direct drop-in replacement across a massive family of 49cc/50cc 4-stroke import street scooters utilizing the standard short-case GY6 engine architecture:
| Scooter Brand | Verified Compatible Model Applications |
|---|---|
| Bintelli | Breeze 50cc, Sprint 50cc |
| Wolf Brand Scooters | Islander 50, Lucky 50, RX-50 |
| Generic GY6 Platforms | Fits various Chinese 139QMB / GY6 50cc 4-stroke scooters explicitly specifying a 669 length belt. |
CRITICAL SHORT-CASE FITMENT NOTE: This transmission belt measures exactly 669mm. It is built exclusively for Short-Case 50cc GY6 configurations running a 10-inch rear wheel layout. If your 50cc scooter utilizes a 12-inch or 13-inch rear wheel, it features a Long-Case engine layout and requires a longer 729mm or 788mm belt instead. Please verify your stock belt sizing markings before completing your order.
Shop Mechanic's Tuning Advice: When installing a fresh CVT drive belt, always inspect your variator roller weights and rear clutch assembly pads for wear or glazing. To optimize performance and ensure maximum transmission belt longevity, we recommend thoroughly wiping down the pulley faces with a brake cleaner solvent to clear out old rubber dust and scaling deposits prior to final belt seating.
