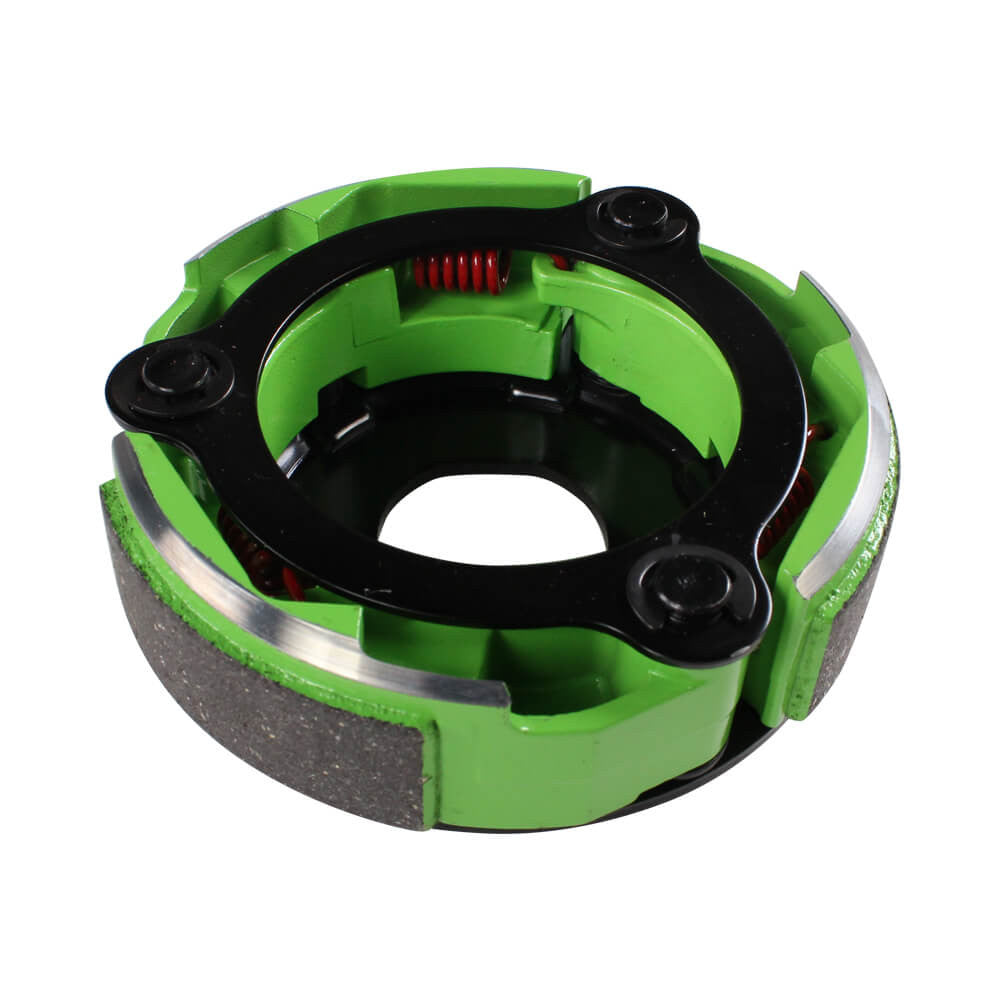

HIGH-QUALITY, FOURTH-GENERATION GREEN RACING CLUTCH, FROM NCY. WITH HIGH FRICTION PADS, THIS IS A GREAT UPGRADE FOR A STOCK OR PERFORMANCE YAMAHA VINO OR YAMAHA ZUMA. THE LIGHTWEIGHT PILLOWS ALLOW FOR QUICKER SPOOL AND HIGHER REVS. OR, YOU CAN INSTALL THE WEIGHTS FOR A QUICK HOOKUP AND LOW-END GRUNT.

SPECIFICATIONS:

INCLUDES THE FOLLOWING CLUTCH HOUSING, CLUTCH SPRINGS, AND CLUTCH WEIGHTS.

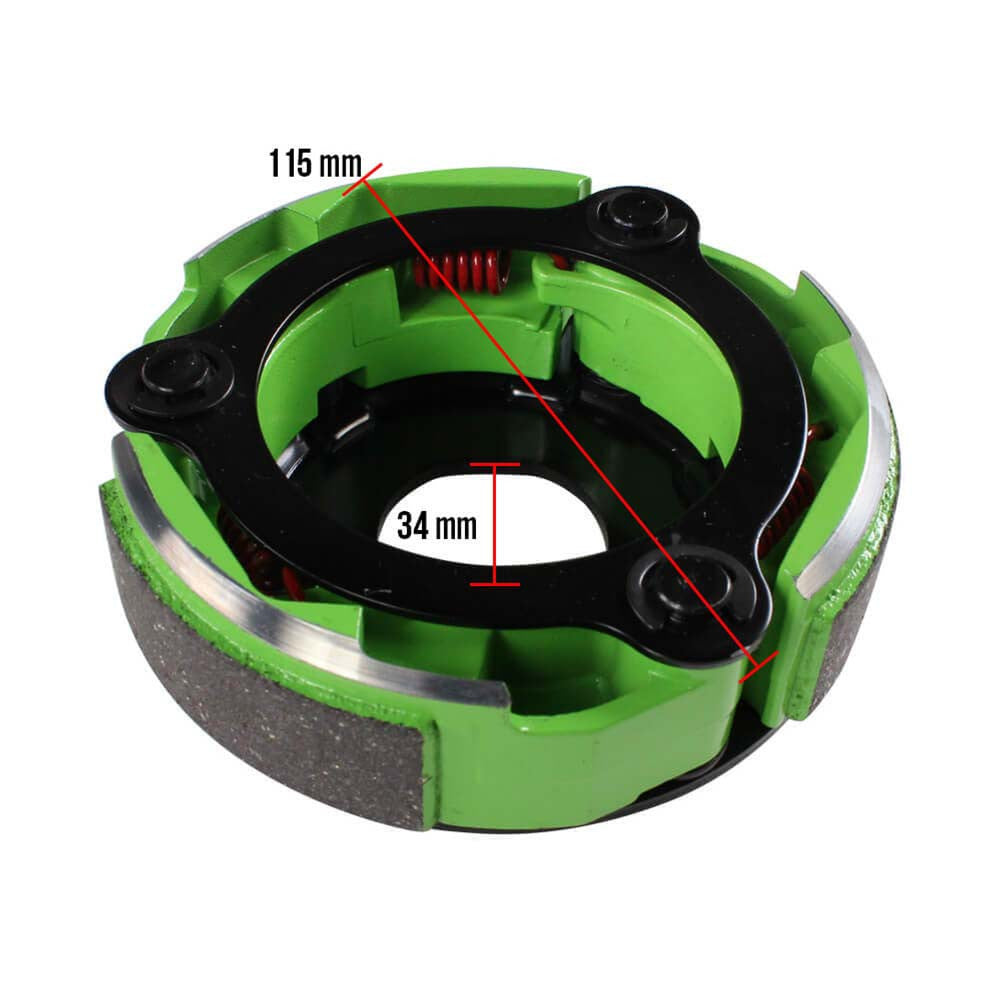

• 1X CLUTCH ID: 32.7<69MM / OD: 115.84MM / H: 38.15MM

• 3X CLUTCH SPRINGS (RED): 2000 RPM

• 3X CLUTCH WEIGHTS (GREEN)

• MADE IN TAIWAN

• FIT CLUTCH SHEAVE: 41MM / BEARING FUNNEL: 42MM / NUT: M28 / SOCKET: 19MM, 46MM / BELL SPLINE: 16

• FIT BELT SIZE: 759-22-30 (VINO)

• FIT BELT SIZE: 790.5-21.9, 810-22-28 (ZUMA)

• FIT CLUTCH SPRINGS: 1K, 1.5K, 2K RPM

• FIT COMPRESSION SPRING: 1K, 1.5K, 2K RPM

• FIT BWS 125

• FIT VINO 125

• FIT ZUMA 125

SUPPORTED MODELS: NCY CVT KIT (PART# 1200-1047); ASIA/EUROPEAN MODEL CYGNUS 125, YAMAHA BW'S 125, YAMAHA CYGNUS 125, YAMAHA GTR 125, YAMAHA VINO 125, YAMAHA ZUMA 125
