Brand New Magneto Stator Plate + Flywheel Roller Fit YX 150cc 160cc Kick Start Engine PIT Trail Dirt Bike Thumpstar

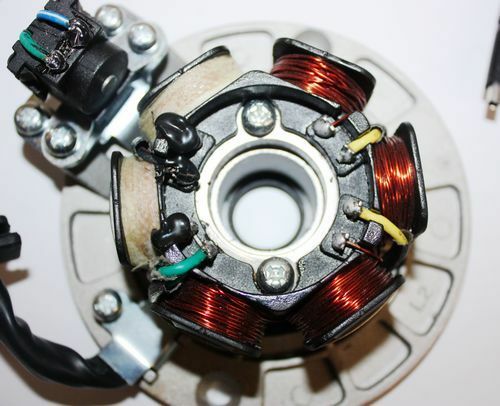

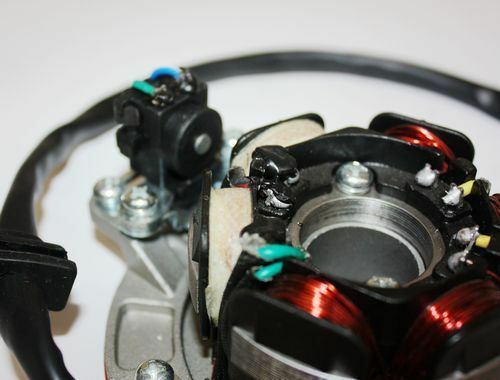

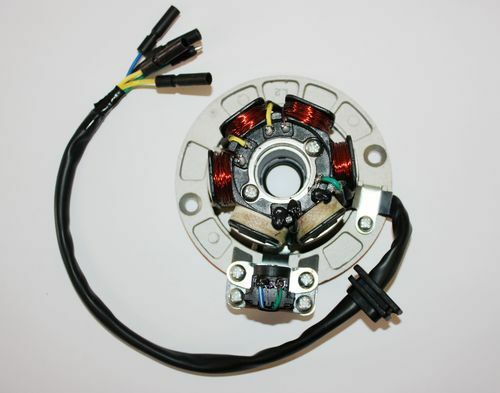

SPECIFICATION OF STATOR

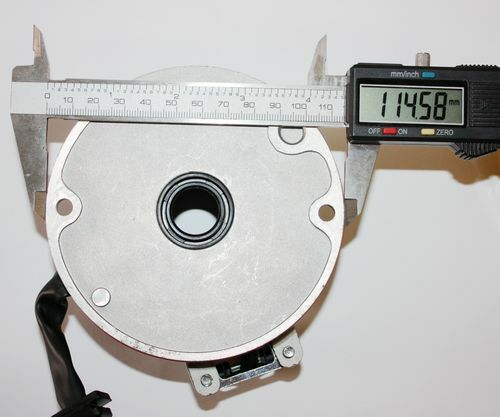

DIAMETER OF BACK PLATE around 114.58mm
DIAMETER OF COIL around 75.10mm

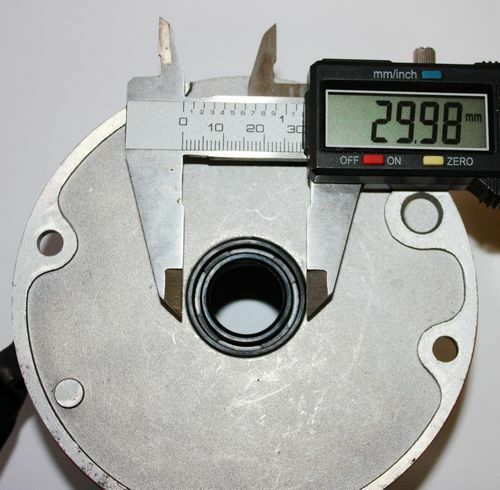

DIAMETER OF CENTRE HOLE around 27.91mm

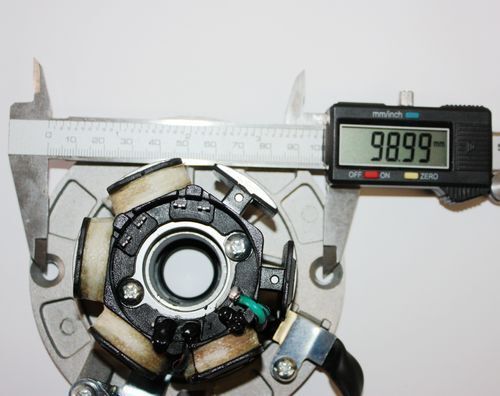

DISTANCE BETWEEN MOUNTING HOLES (CENTRE TO CENTRE) around 100.19mm
SPECIFICATION OF FLYWHEEL
DIAMETER OF FLYWHEEL around 88.07mm
DIAMETER OF CENTRE HOLE (TAPERED) 14.96mm - 18.77mm
THICKNESS OF FLYWHEEL around 36.94mm
