TAIDA 61MM CAST PISTON KIT – GY6 2-VALVE

TAIDA 61mm cast aluminum piston set for compatible 4-stroke GY6 125cc/150cc+ performance engines.

Designed for 61mm bore / approximately 171cc applications using a 2-valve cylinder head and 15mm wrist pin. Complete piston set includes the piston, rings, wrist pin and retaining clips needed for installation.

PRODUCT SPECIFICATIONS

• Brand: TAIDA
• Piston Type: Cast Aluminum
• Piston Diameter: 61mm
• Application: 2-Valve / 2V
• Displacement: Approx. 171cc with compatible configuration
• Engine Type: 4-Stroke GY6
• Wrist Pin Diameter: 15mm
• Wrist Pin Size: 48.5mm × 15mm
• Piston Ring Thickness: 1.0mm / 1.0mm / 2.0mm
• Country of Manufacture: Taiwan
• Condition: New

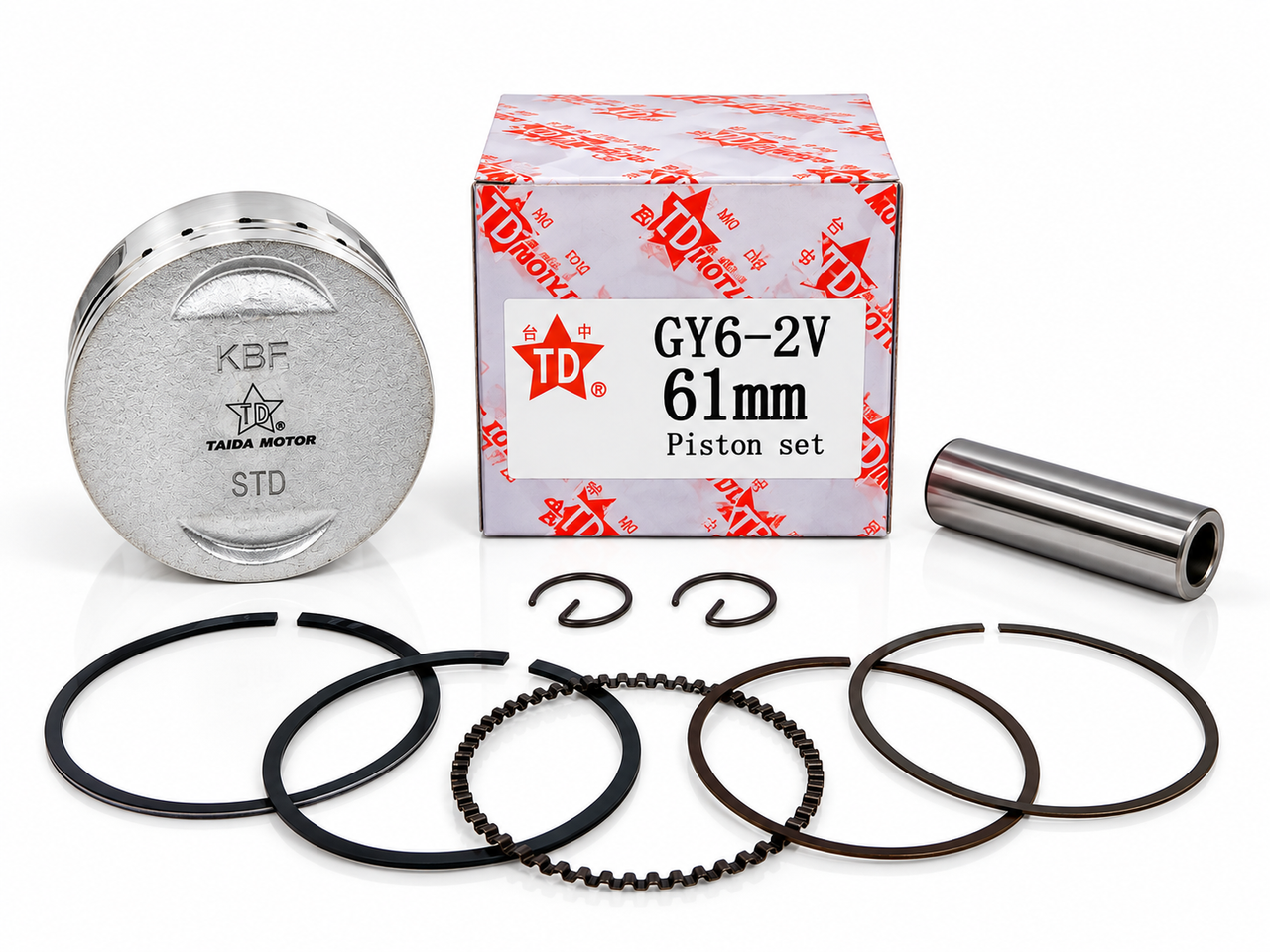

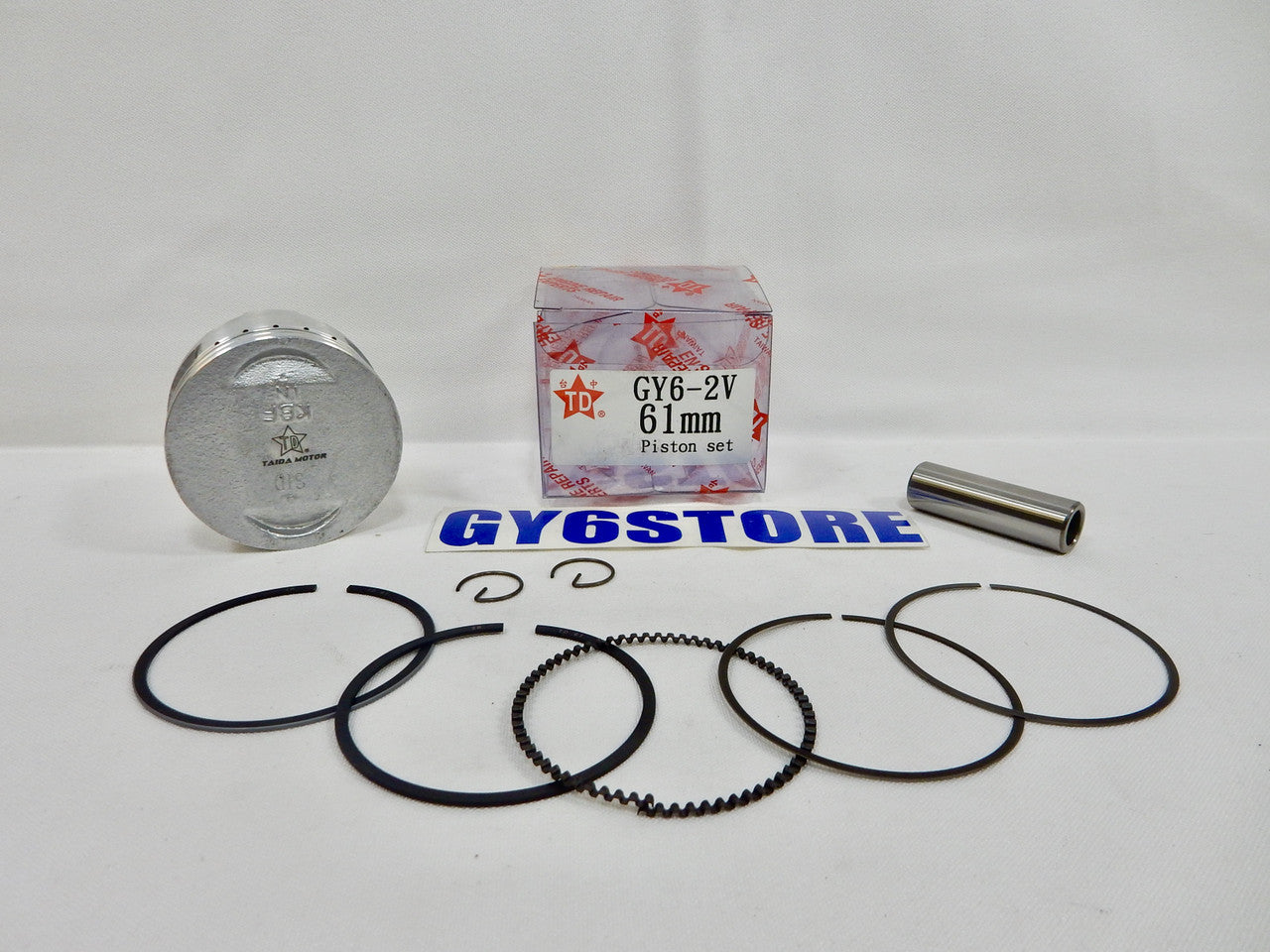

KIT INCLUDES

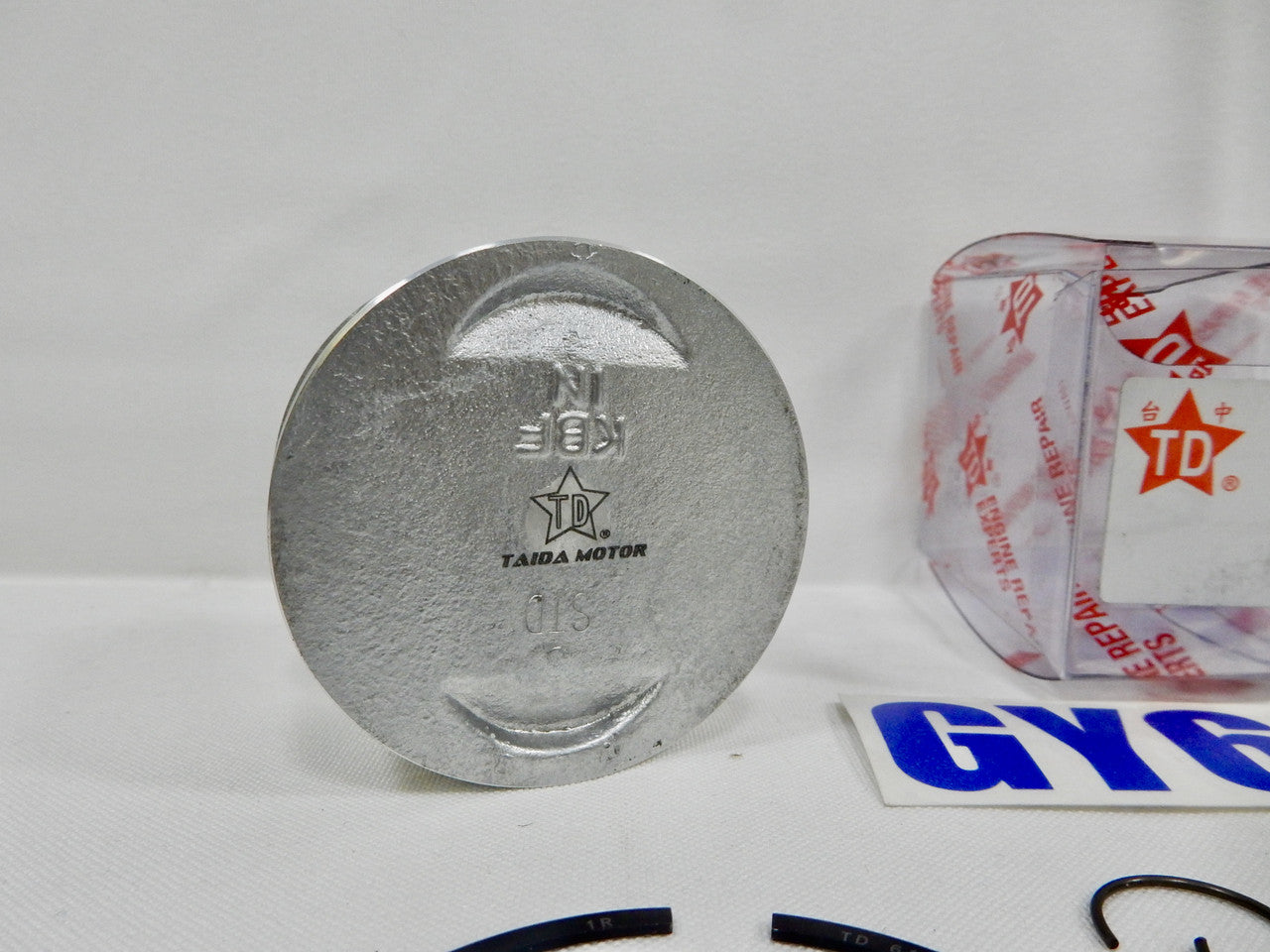

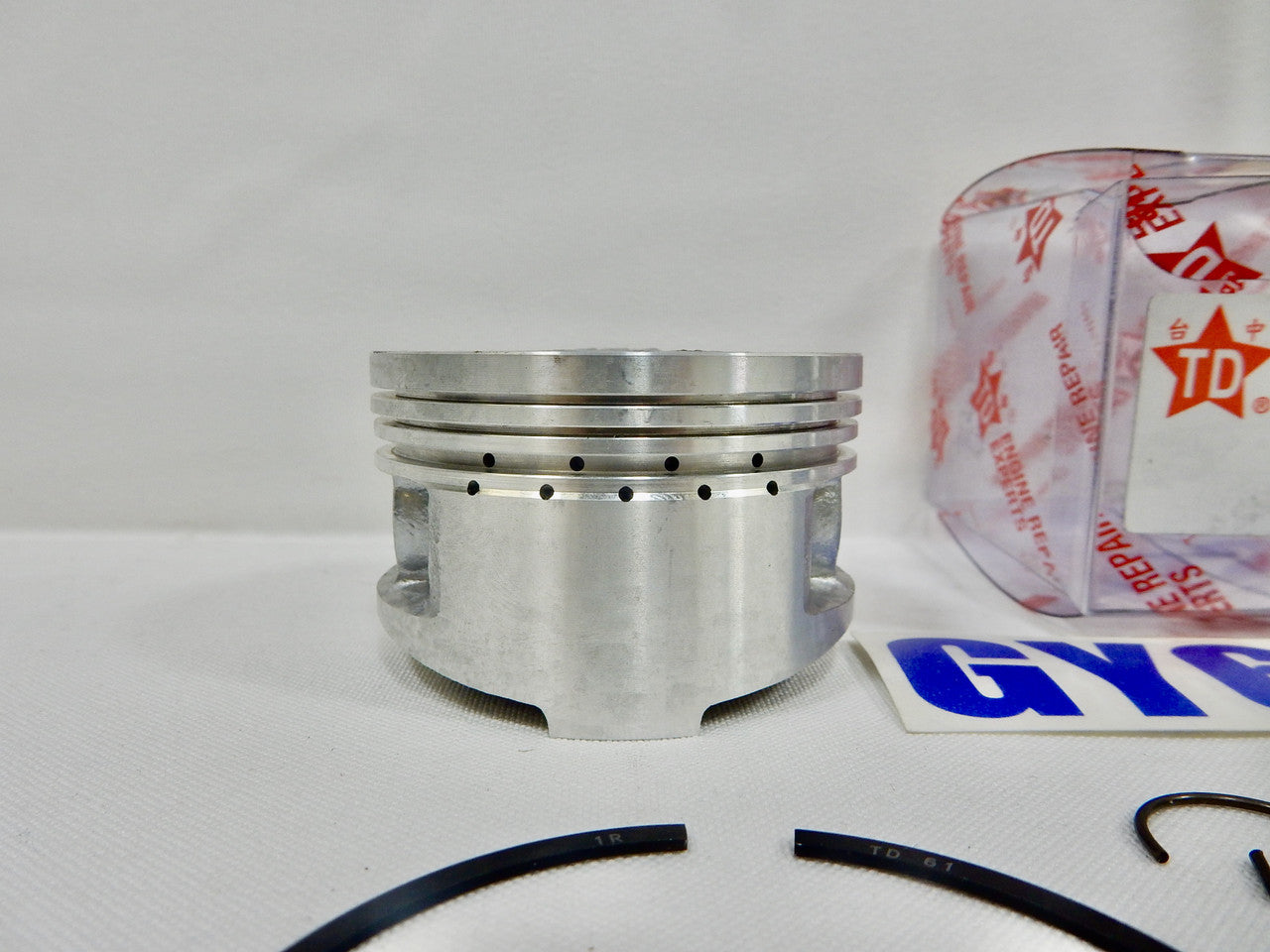

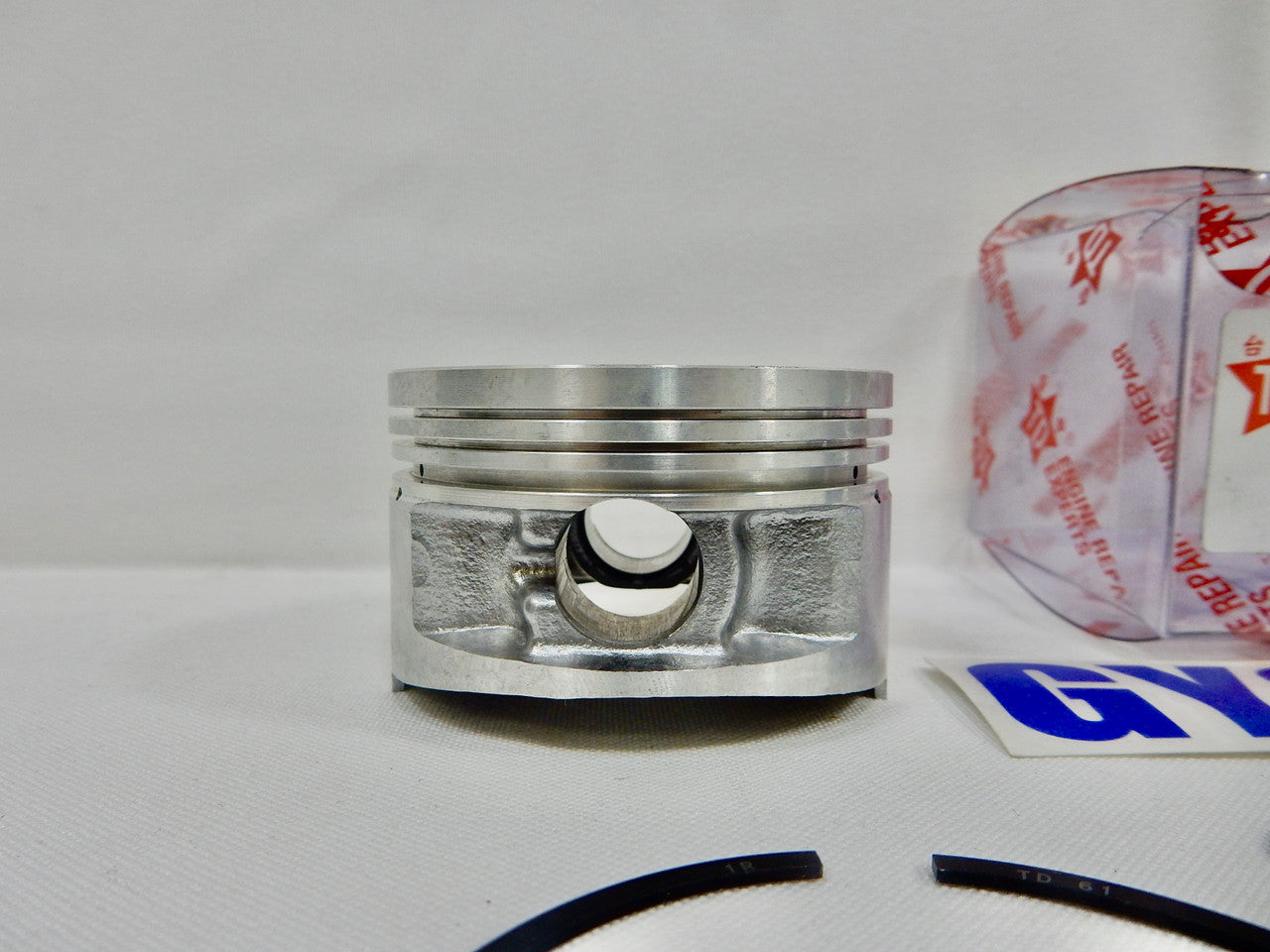

• 1 × TAIDA 61mm Cast Piston
• 5 × 61mm Piston Ring Components
• 1 × 48.5mm × 15mm Wrist Pin
• 2 × Wrist Pin Retaining Clips / G-Clips

FITMENT

Designed for compatible GY6 125cc / 150cc+ 4-stroke engines using a:

• 61mm cylinder bore
• 15mm wrist pin
• 2-valve piston configuration

This is a replacement/performance piston set only. Cylinder and cylinder head are NOT included.

IMPORTANT

Please verify your 61mm bore, 15mm wrist pin and piston configuration before ordering. GY6 engines and big-bore kits can use different piston designs and pin sizes.

Piston design may vary slightly from the listing photos depending on the current production batch supplied by TAIDA. Specifications and intended application remain as described.

NEW TAIDA PISTON SET – MADE IN TAIWAN
