SSP-G GY6 150cc - 232ccPERFORMANCE CLUTCH DRUM - 12 SPOKE
Weight:0.4 kg

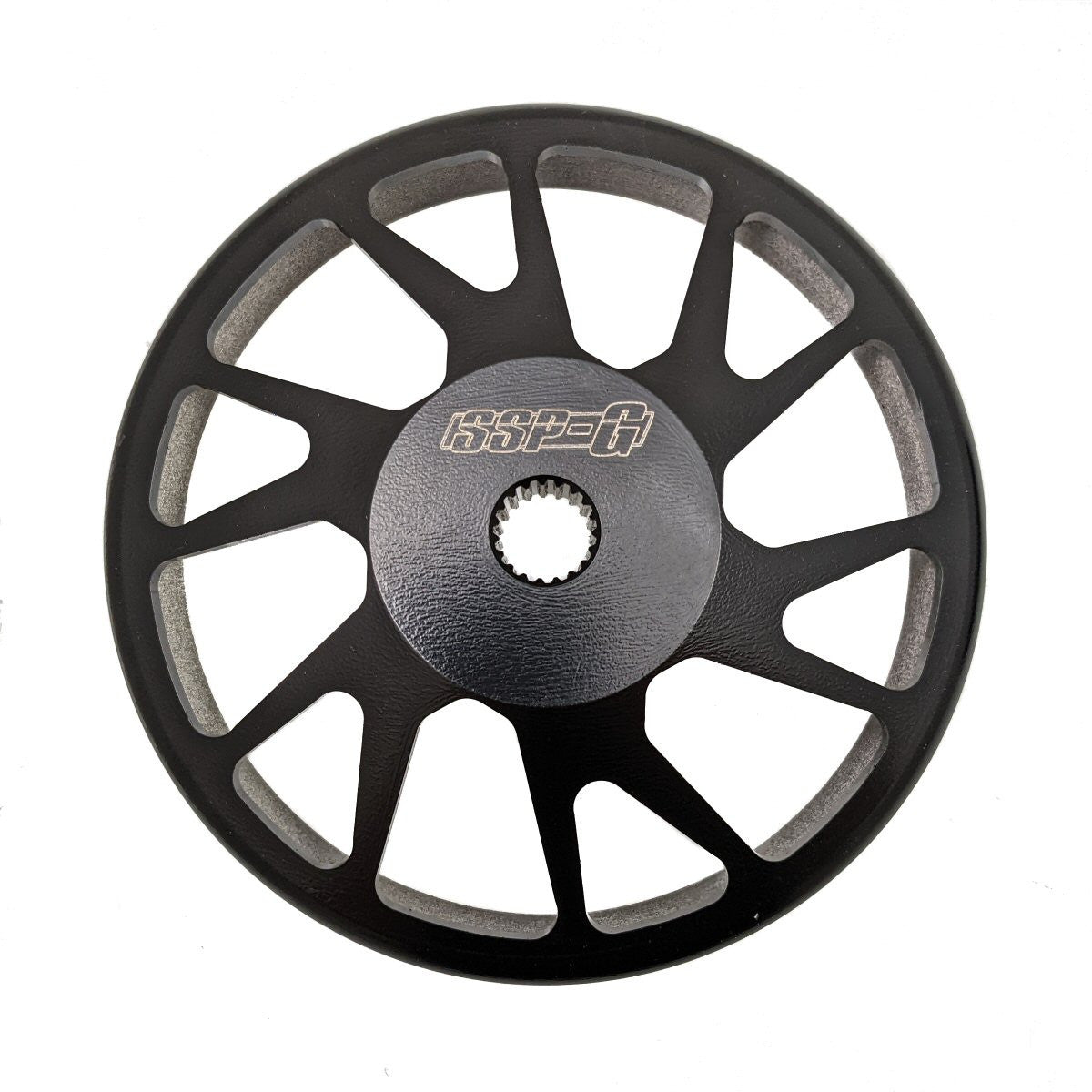

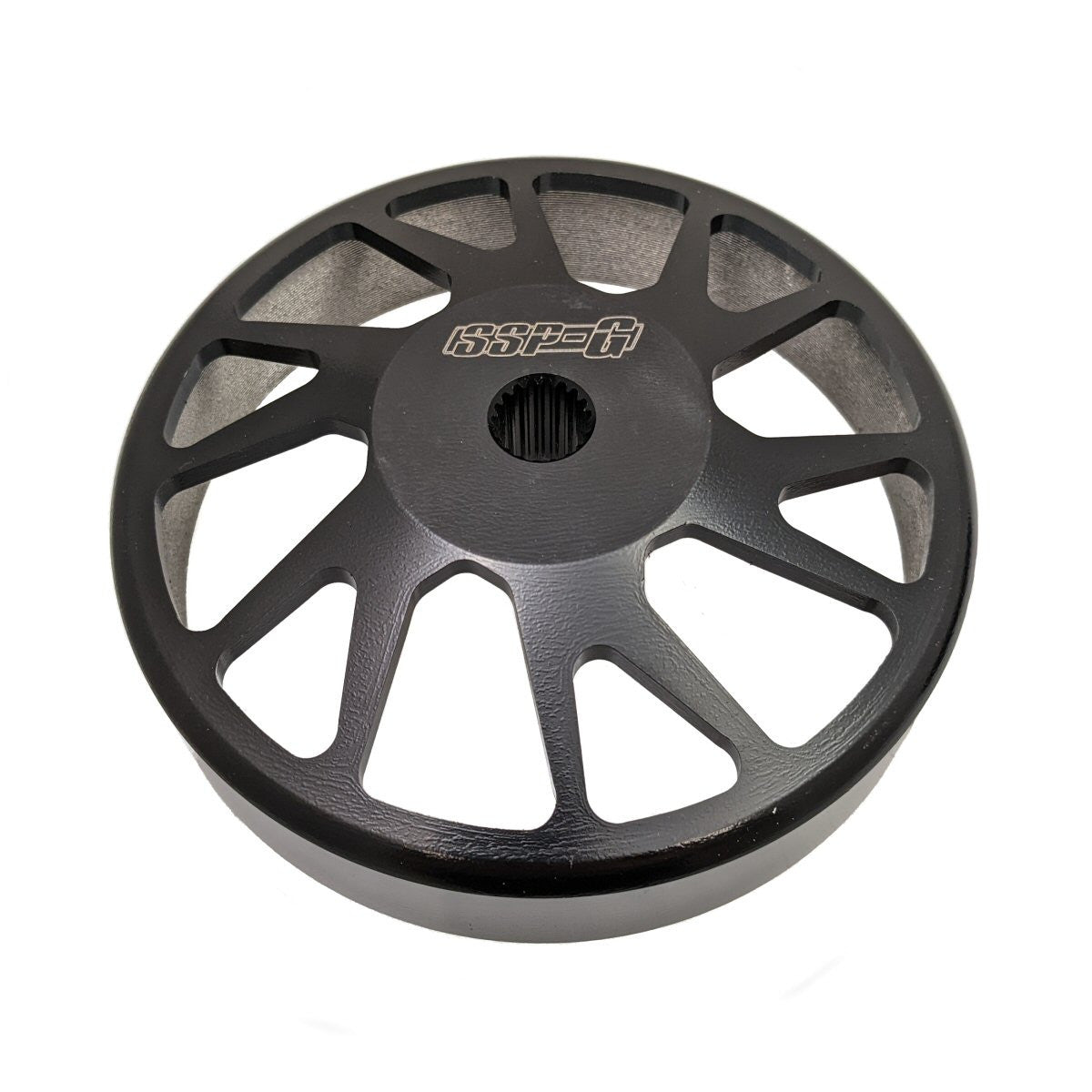

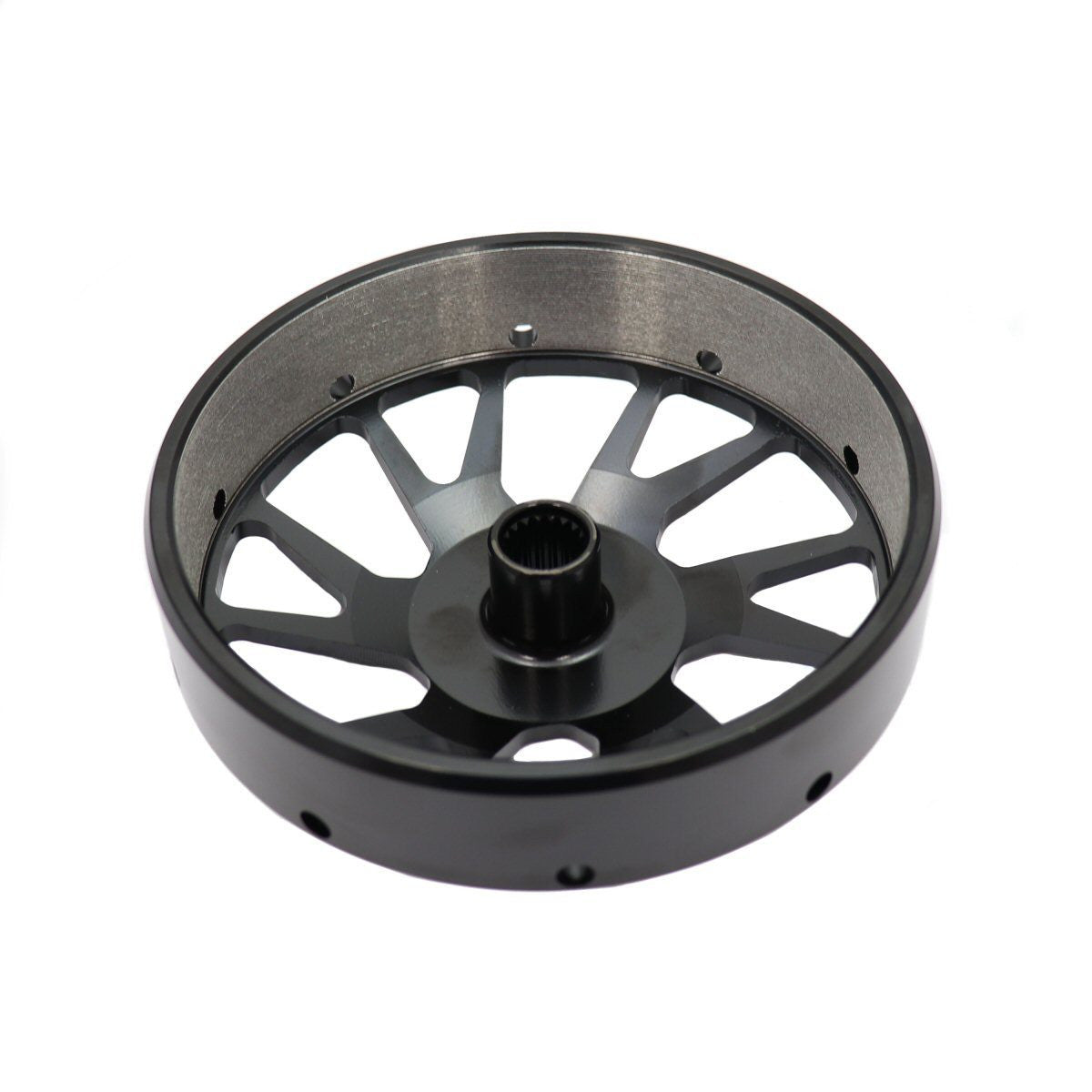

169-537Cooling Under Pressure: SSP-G 12-Spoke Performance Clutch Bell
Eliminate clutch fade and improve take-off consistency with the SSP-G 12-Spoke Performance Clutch Drum. Engineered for 125cc to 170cc GY6 engines, this high-performance bell features a specialized 12-spoke vented design. This open architecture drastically improves airflow within the CVT case, allowing heat to escape rapidly and preventing the clutch pads from "glazing" during aggressive stop-and-go riding or off-road use.
Technical Performance Features
- Vented 12-Spoke Design: Maximizes heat dissipation to keep clutch temperatures low, ensuring a consistent bite and preventing power-robbing slip.
- Precision Balanced: CNC-machined to exacting tolerances to eliminate high-RPM vibration, protecting your final drive bearings and ensuring a smooth power delivery.
- Enhanced Friction Surface: The internal drum surface is optimized for rapid engagement, reducing "shudder" during low-speed take-offs.
- Universal GY6 Compatibility: Features a standard 19-spline interface, making it a direct-fit upgrade for nearly all 150cc-based 4-stroke scooters, ATVs, and karts.
Comprehensive Fitment Guide
This performance drum is a direct replacement for 125cc / 150cc / 170ccengines with the following codes:
| Engine Codes | Compatibility Status |
|---|---|
| QMJ / QMI Series | 157QMJ, 152QMI, 1P57QMJ, 161QMK |
| Performance Variants | YN1P57QMJ, BN157QMJ, JJ157QMJ, BN161QMK-A |
| Fitment Note | Compatible with any 125cc+ engine code containing "QM" or "FM". |
Technical Specifications
- Inner Diameter: 125mm
- Outer Diameter: 136mm
- Number of Splines: 19
- Spline Diameter: 13.5mm (Peak) / 15mm (Valley)
