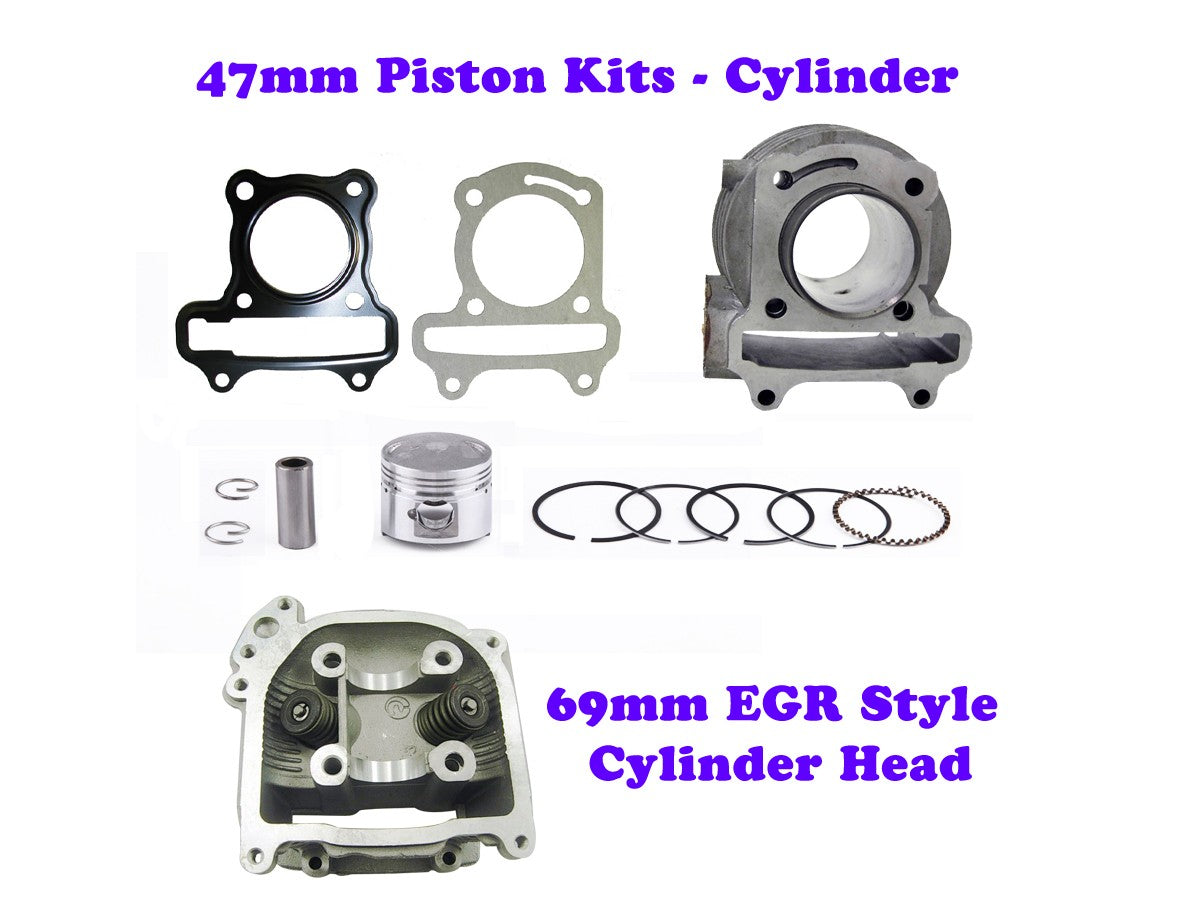

80cc QMB139 47MM Cylinder Engine Kit with 69mm EGR Head

99311
  • $38.99


GY6 50CC 47mm QMB139 Big Bore cylinder Engine kit with Cylinder,Cylinder Head piston kit, head gasket, base gaskets.

QMB139 47mm Piston Kit

  •  Piston Diameter: 47mm
  •  Piston Pin Diameter: 13mm
  •  Piston Pin Length: 38mm

Cylinder Head Gasket

  • 47mm Inside Diameter

Cylinder Gasket GY6 50cc

  • Bore: 47mm

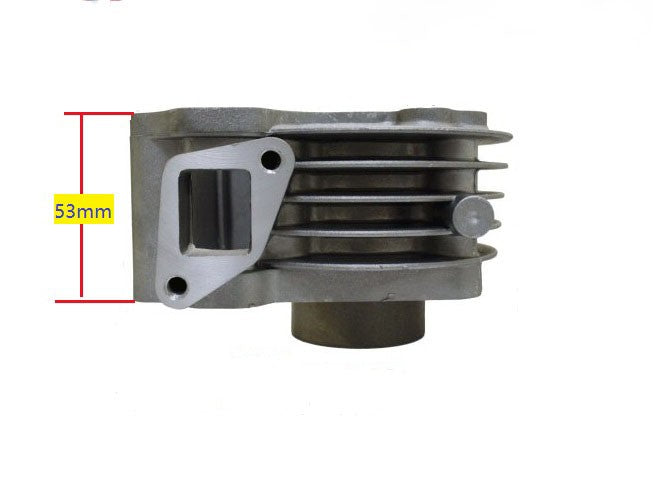

Cylinder for GY6 50cc engine

  • * Bore: 47mm

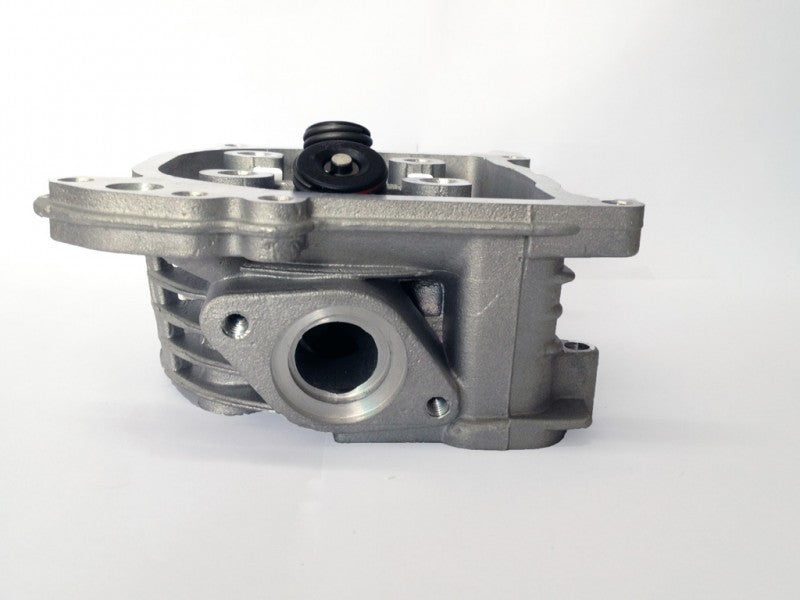

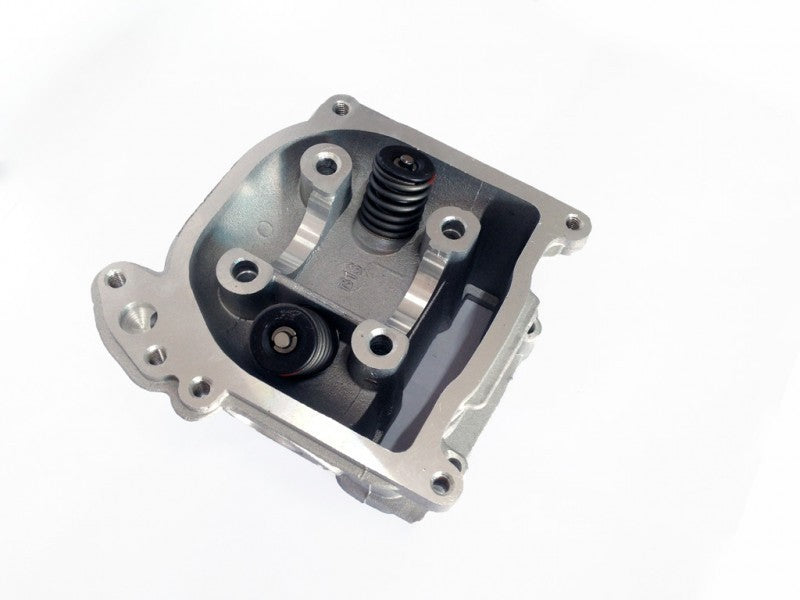

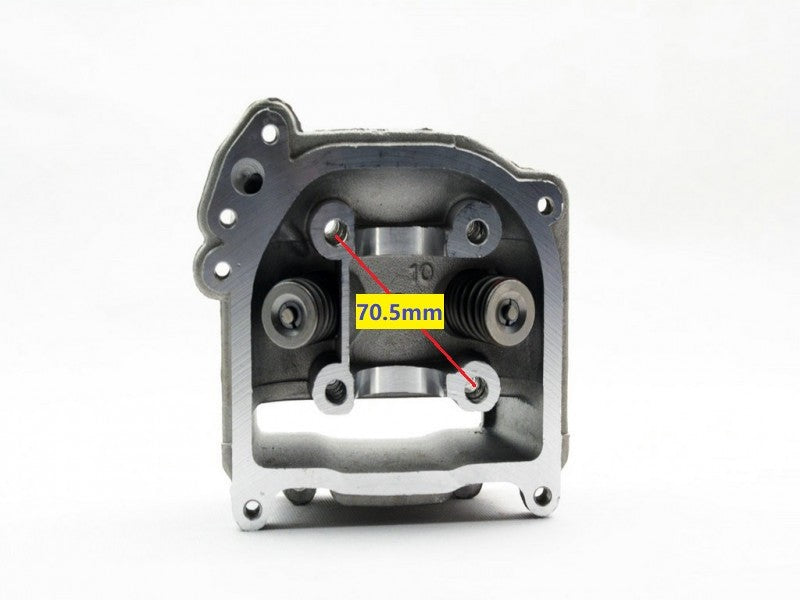

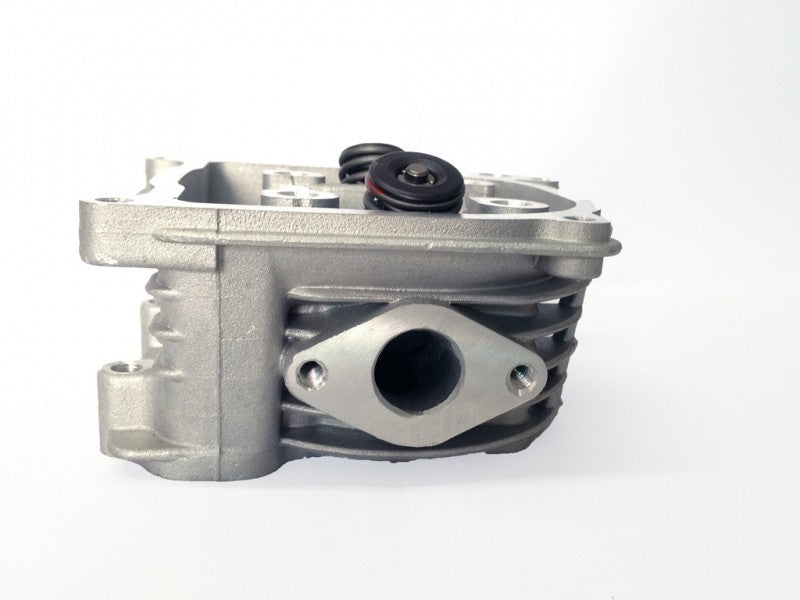

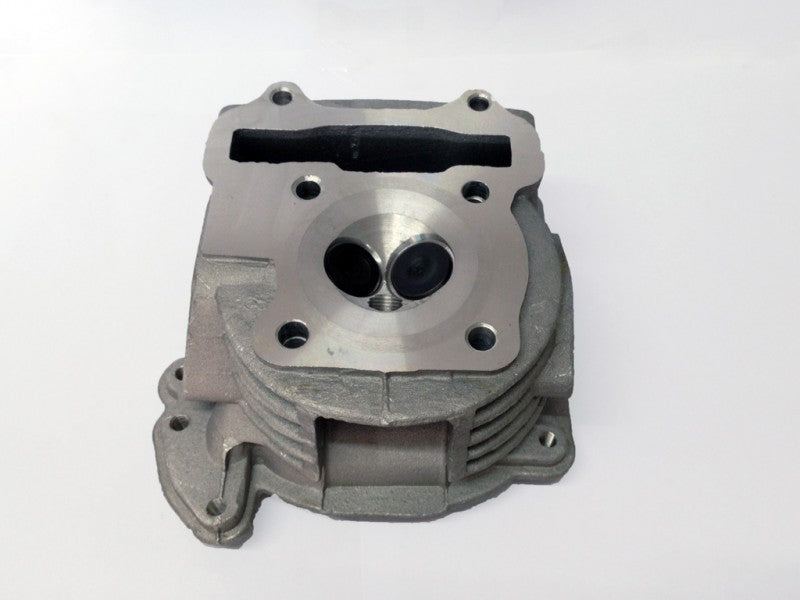

Cylinder Head

  •  EGR Style Cylinder Head
  •  47mm Bore
  •  Valve Length: 69mm
  •  Overall Height: 59.5mm

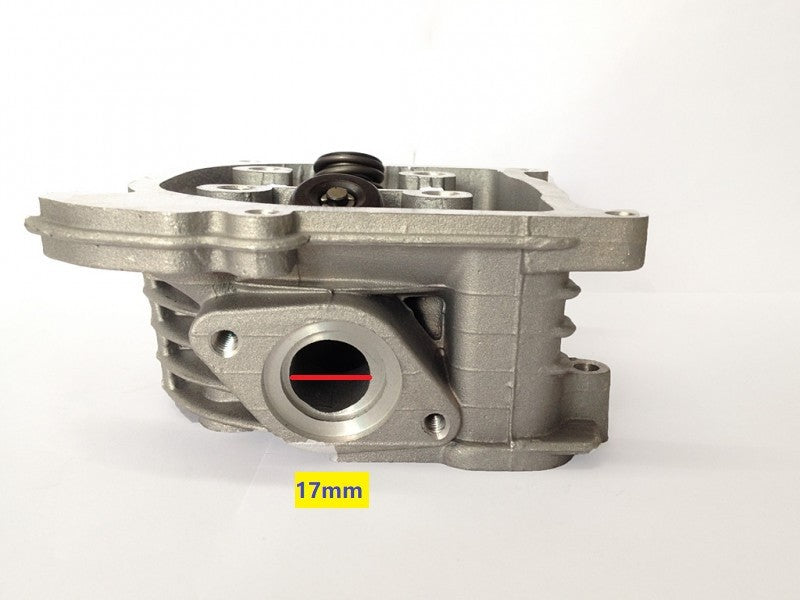

  •  Intake Port Diameter: 17mm
  •  Exhaust Port Diameter: 18mm
  •  Exhaust Bolt Hole Spacing: 49.75mm
  •  Intake Bolt Hole Spacing: 44.75mm
QMB139 47mm Piston Kit Piston Diameter: 47mm Piston Pin Diameter: 13mm Piston Pin Length: 38mm Cylinder Head Gasket 47mm Inside Diameter Cylinder Gasket GY6 50cc Bore: 47mm Cylinder for GY6 50cc engine * Bore: 47mm Cylinder Head EGR Style Cylinder Head 47mm Bore Valve Length: 69mm Overall Height: 59.5mm Intake Port Diameter: 17mm Exhaust Port Diameter: 18mm Exhaust Bolt Hole Spacing: 49.75mm Intake Bolt Hole Spacing: 44.75mm
