6T Clutch Drum Bell Housing +T8F Chain +Sprocket 49cc Pocket Quad Dirt Bike ATV
Weight:1.5 kg

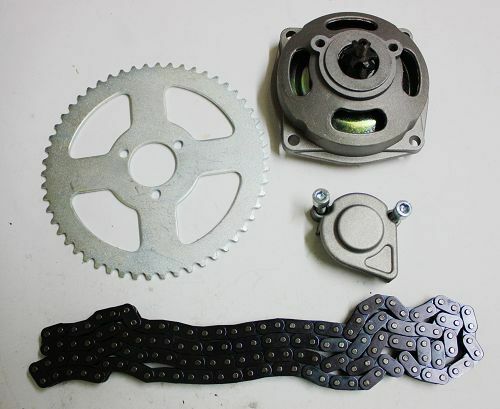

38394Brand New Clutch Drum Bell Housing Gear Box + T8F Chain + 54T Rear Sprocket Fit 43cc/49cc Mini PIT Dirt Pocket Bike Mini Quad ATV Pocket Rocket 6 Tooth Front Sprocket Cog
SPECIFICATION
CLUTCH DRUM HOUSING MEASURMENT
Tooth 6 T
Distance Between Mount Hole(centre to centre) around 72mm
T8F SKINNY CHAIN MEASUREMENT
Model T8F
Length around 50cm (500mm)
Links 126 links

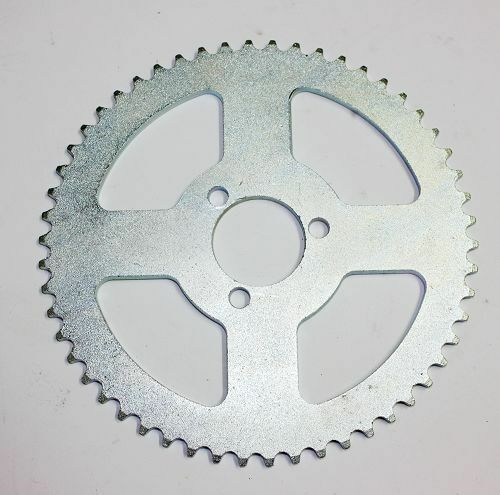

REAR SPROCKET / COG MEASUREMENT
FIT T8F Chain
Diameter of Sprocket / Cog around 14cm (140mm)
Diameter of Centre Hole around 2.9cm (29mm)
Distance Between Mount Hole(centre to centre) around 3.4cm (34mm)
Tooth 54 T
