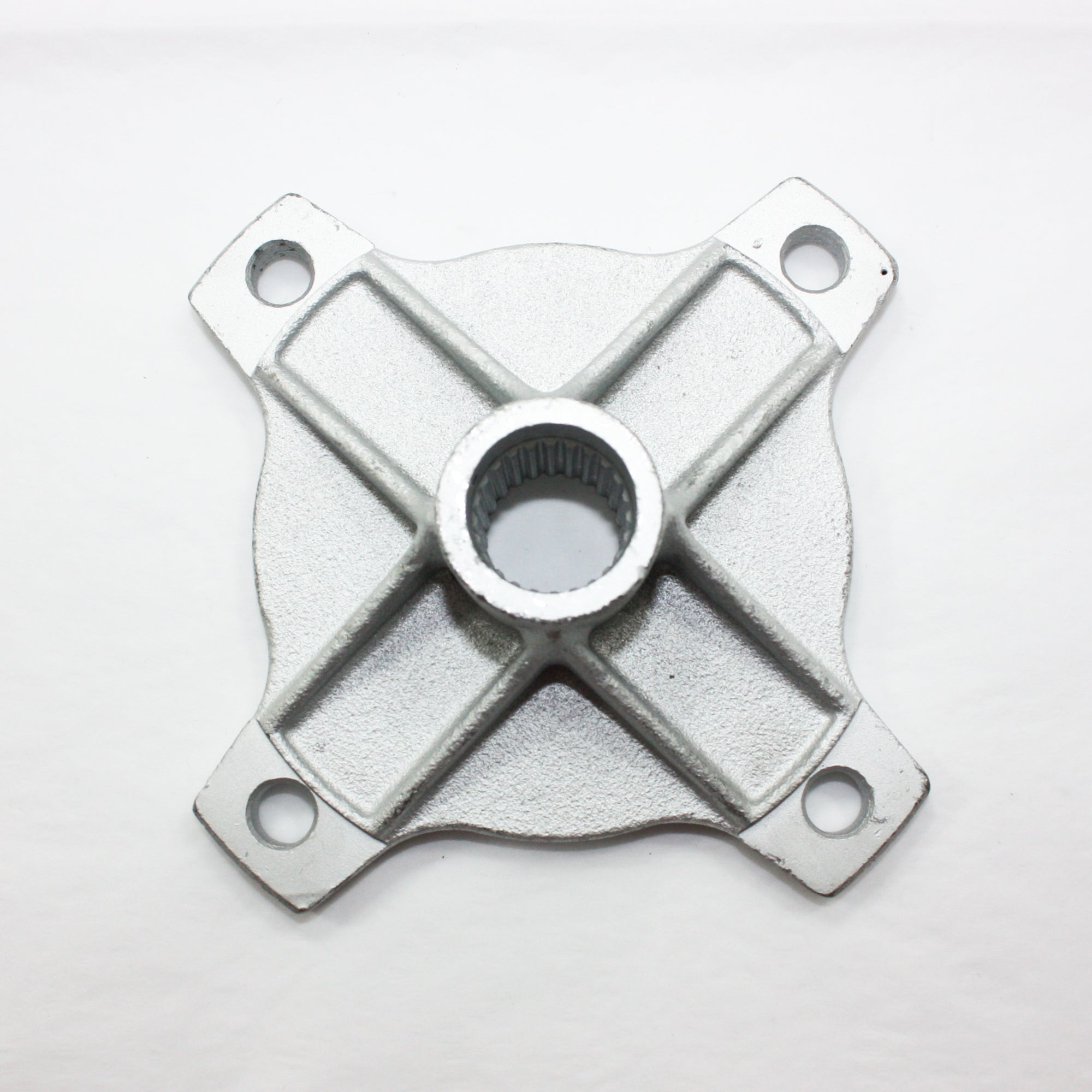

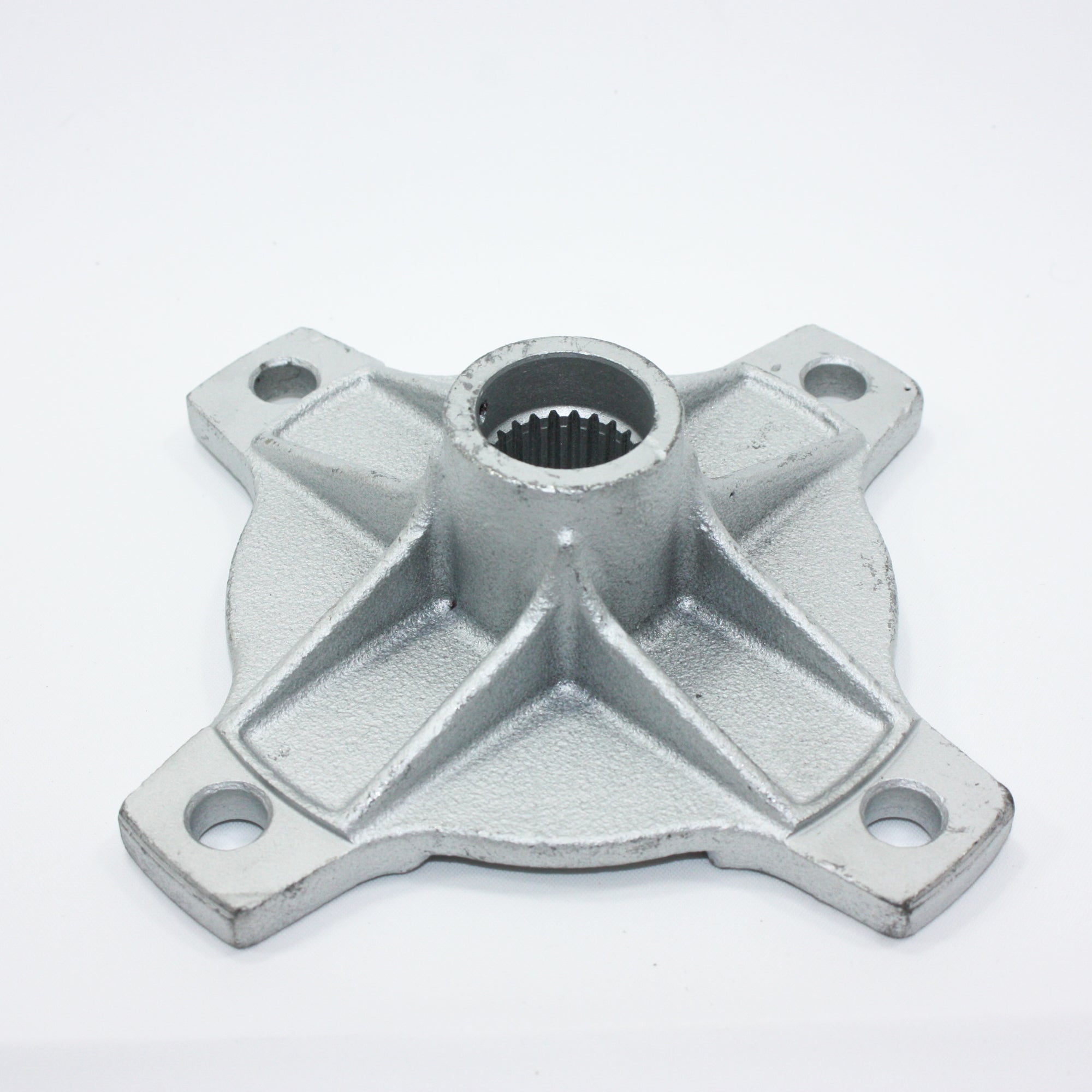

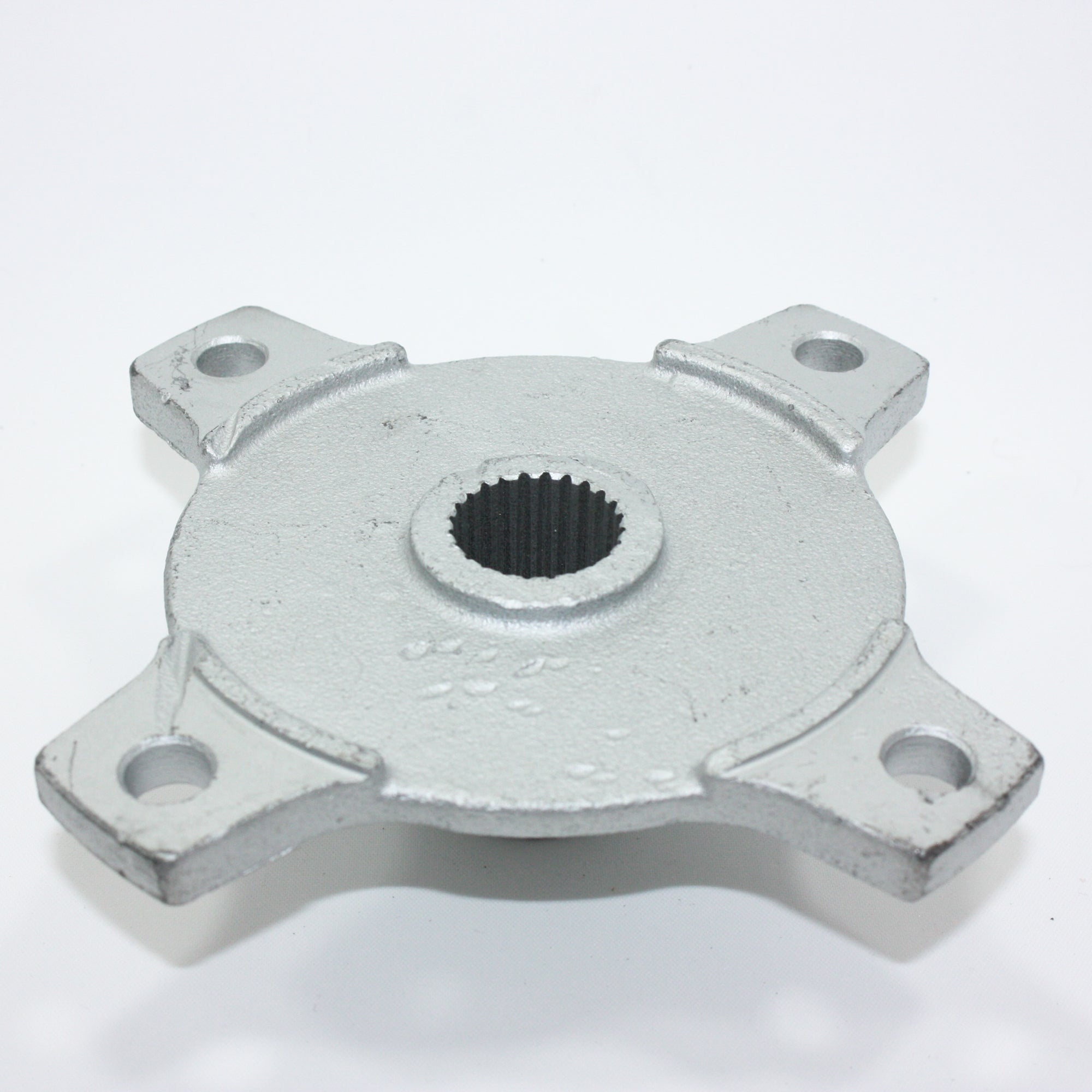

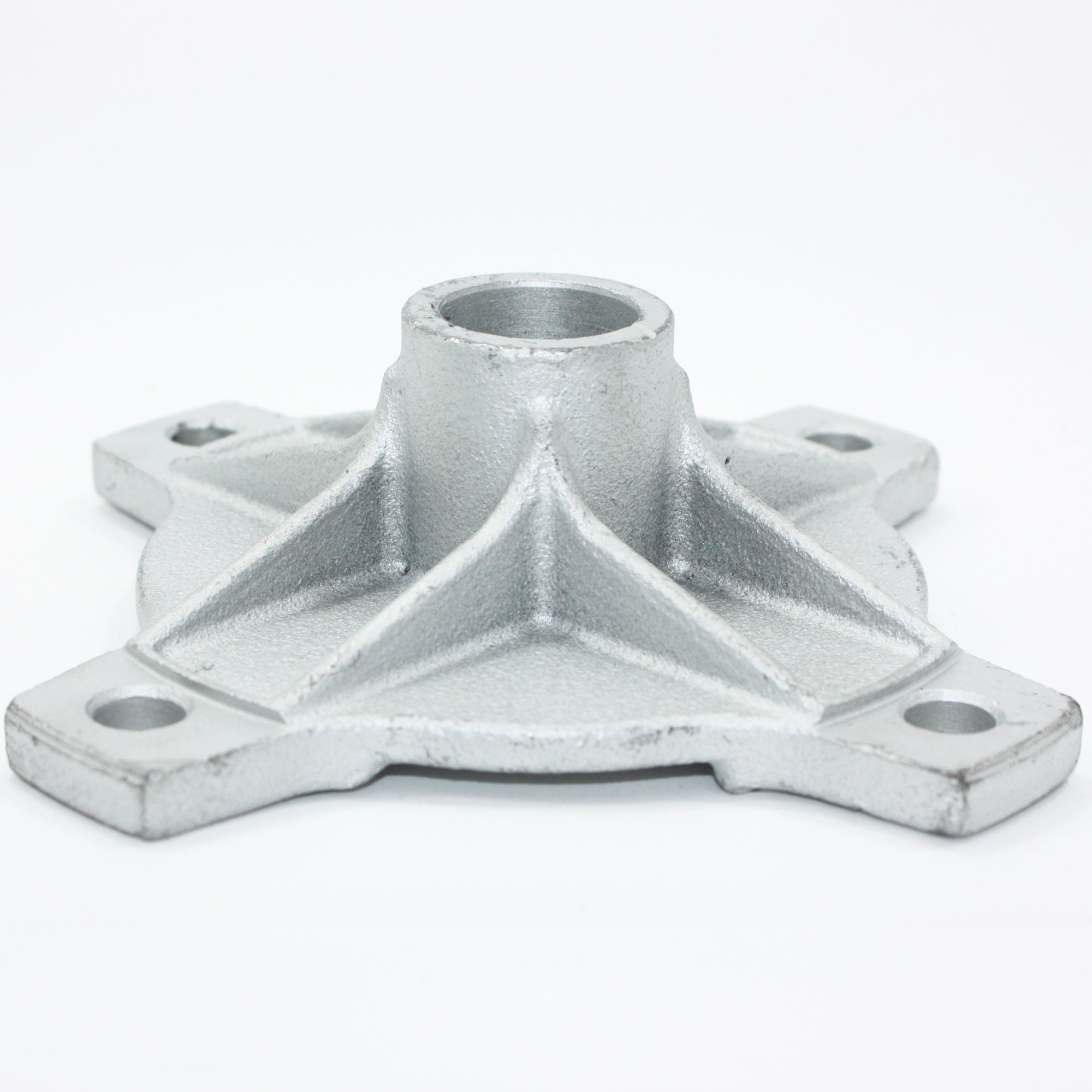

Brand New 24 Tooth Spline 4 Stud Wheel Rim Rear Axle Hub for 150cc 250cc Quad Dirt Bike ATV Dune Buggy Go Kart
SPECIFICATION
SPLINE 24 Teeth
DIAMETER OF THE AXLE HOLE (BETWEEN TOP OF SPLINE) around 23.34mm
DIAMETER OF THE AXLE HOLE (BETWEEN BOTTOM OF SPLINE) around 24.96mm
DISTANCE OF NEAREST MOUNTING HOLE (CENTRE HOLE TO CENTRE HOLE) around 95.95mm
DISTANCE OF CROSSING MOUNTING HOLE (CENTRE HOLE TO CENTRE HOLE) around 135.25mm
DIAMETER OF HOLE (TAPERED WITHOUT SPLINE) around 29mm
