MOTORCYCLE FLYWHEEL MAGNETO STATOR PULLER SET 27mm 28mm 16mm FOR YAMAHA KAWASAKI
Weight:0.4 kg
NC-6098
$587$5.87
DESIGNED TO LOOSEN AND TIGHTEN THE LOCK NUT FOR THE REMOVAL AND INSTALLATION OF A MOTORCYCLE CLUTCH.

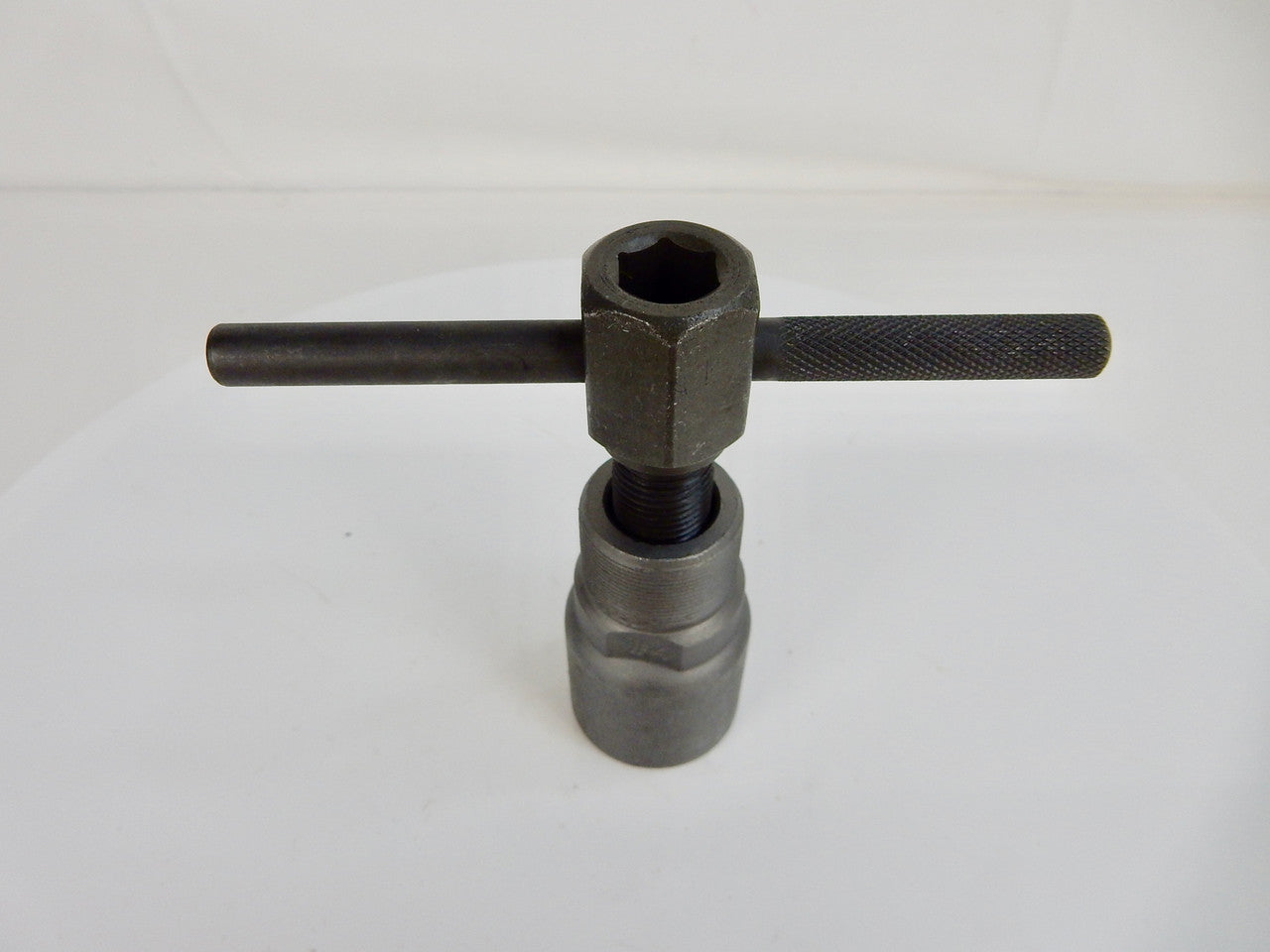

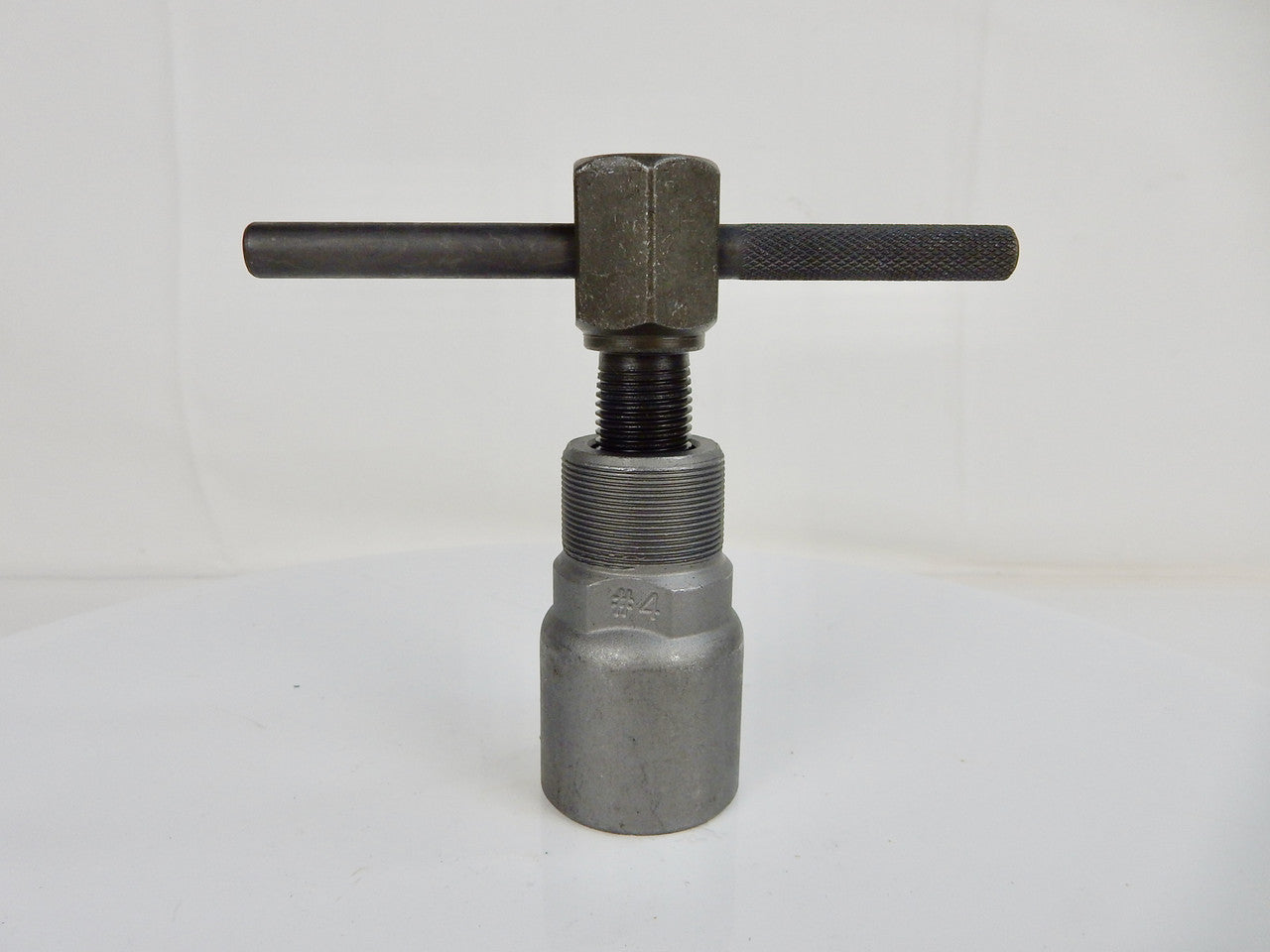

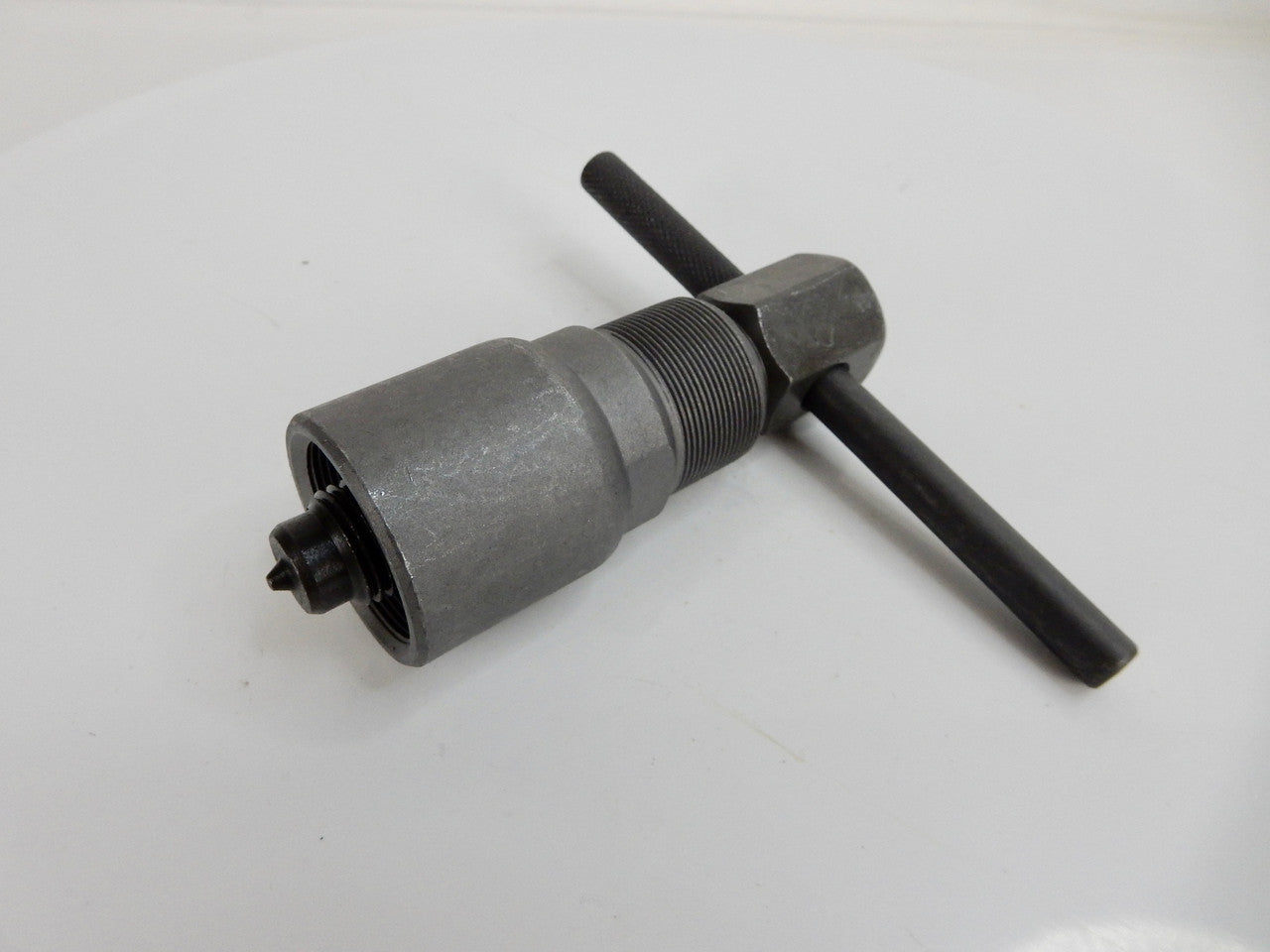

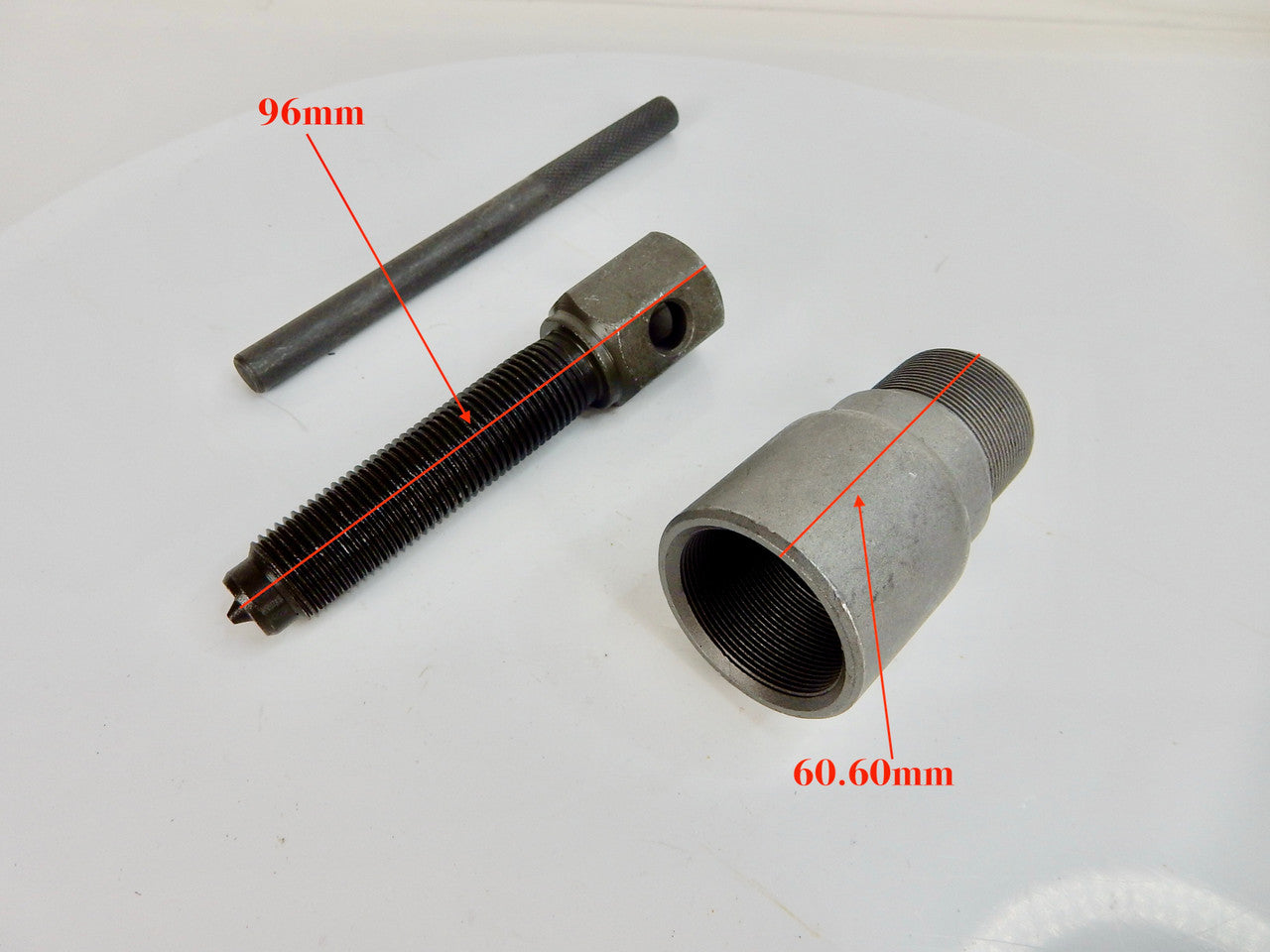

3 IN ONE MOTORCYCLE FLYWHEEL PULLER, 27MM X 1.0MM LEFT-HAND MALE THREADS, 28MM X 1.0MM RIGHT-HAND FEMALE THREADS WITH 24MM WELL DEPTH.THE CENTER BOLT IS 16MM X 1.5MM RIGHT-HAND THREADS AND CAN BE USED BY ITSELF ON SOME APPLICATIONS
THIS FLYWHEEL PULLER IS FOR GY6 125CC & 150CC ENGINES, AS WELL AS YAMAHA KAWASAKI KTM SUZUKI, MODELS PARTS GALORE.
HOW TO MEASURE YOUR THREAD SIZE
1. MALE THREADS: SIMPLY MEASURE THE DIAMETER, 27MM IS A 27MM THREAD.
2. INTERNAL THREADS: MEASURE THE DIAMETER, FINE THREAD ADD 1MM, COARSE THREAD ADD 1.5MM. NOTE: THIS IS NOT PERFECT BUT A GOOD RULE OF THUMB.
3. PITCH: AS FAR AS PULLERS GO, FINE THREAD IS USUALLY 1.0MM PITCH AND COARSE THREAD IS ALMOST ALWAYS 1.5MM PITCH. THE ONLY PRACTICAL WAY TO MEASURE PITCH IS WITH A THREAD PITCH GAUGE.
PRODUCT SPECIFICATION
TYPE 3 WAY FLYWHEEL PULLER
MATERIAL METAL
COLOUR GREY
LEFT-HAND MALE THREADS 27MM X 1.0MM
RIGHT-HAND FEMALE THREADS 28MM X 1.0MM WITH 24MM WELL DEPTH
