125cc (54mm BORE) HORIZONTAL HONDA STYLE CYLINDER & HEAD KIT TAO COOLSTER ECT
Weight:3.4 kg
290-257-125

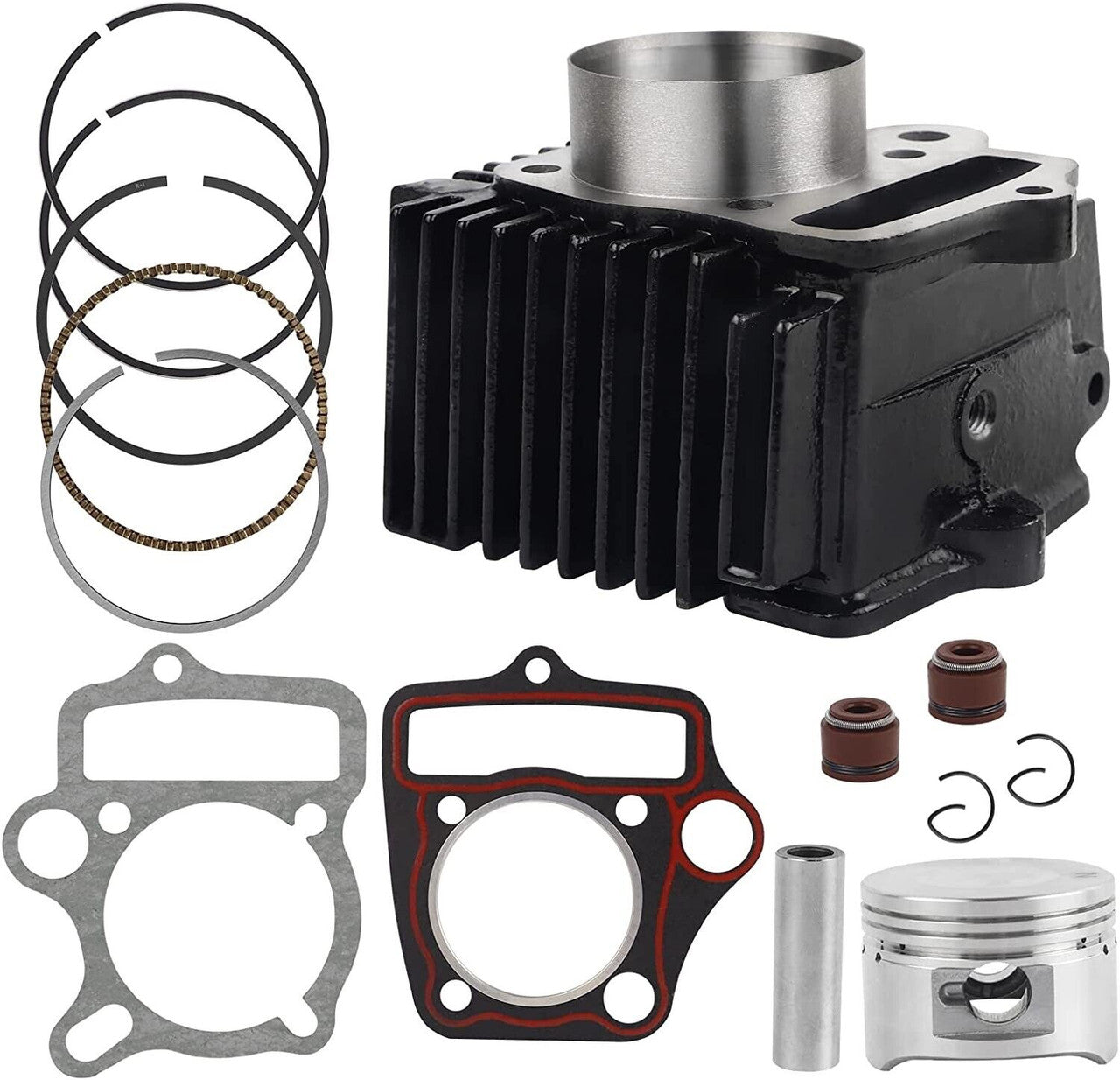

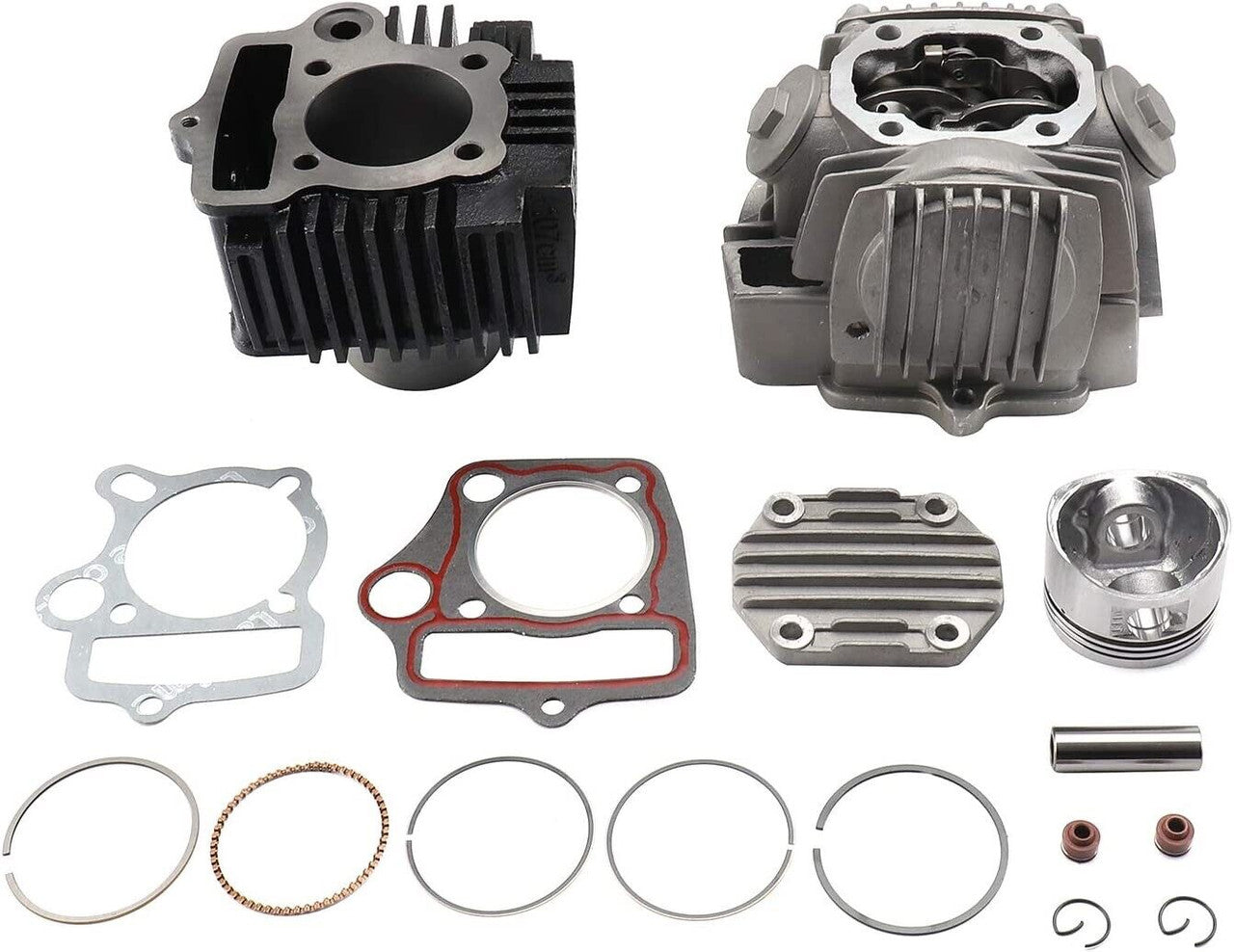

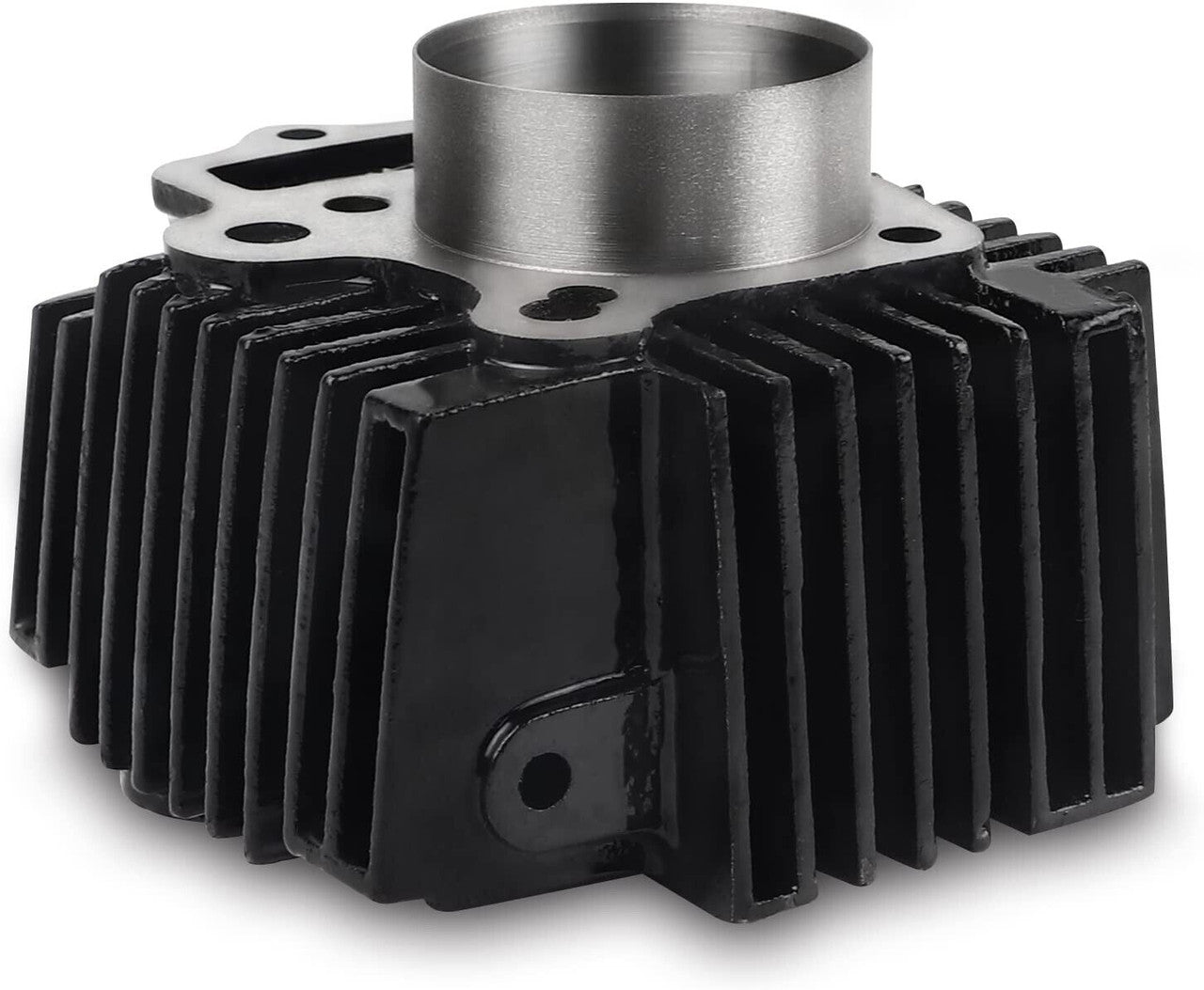

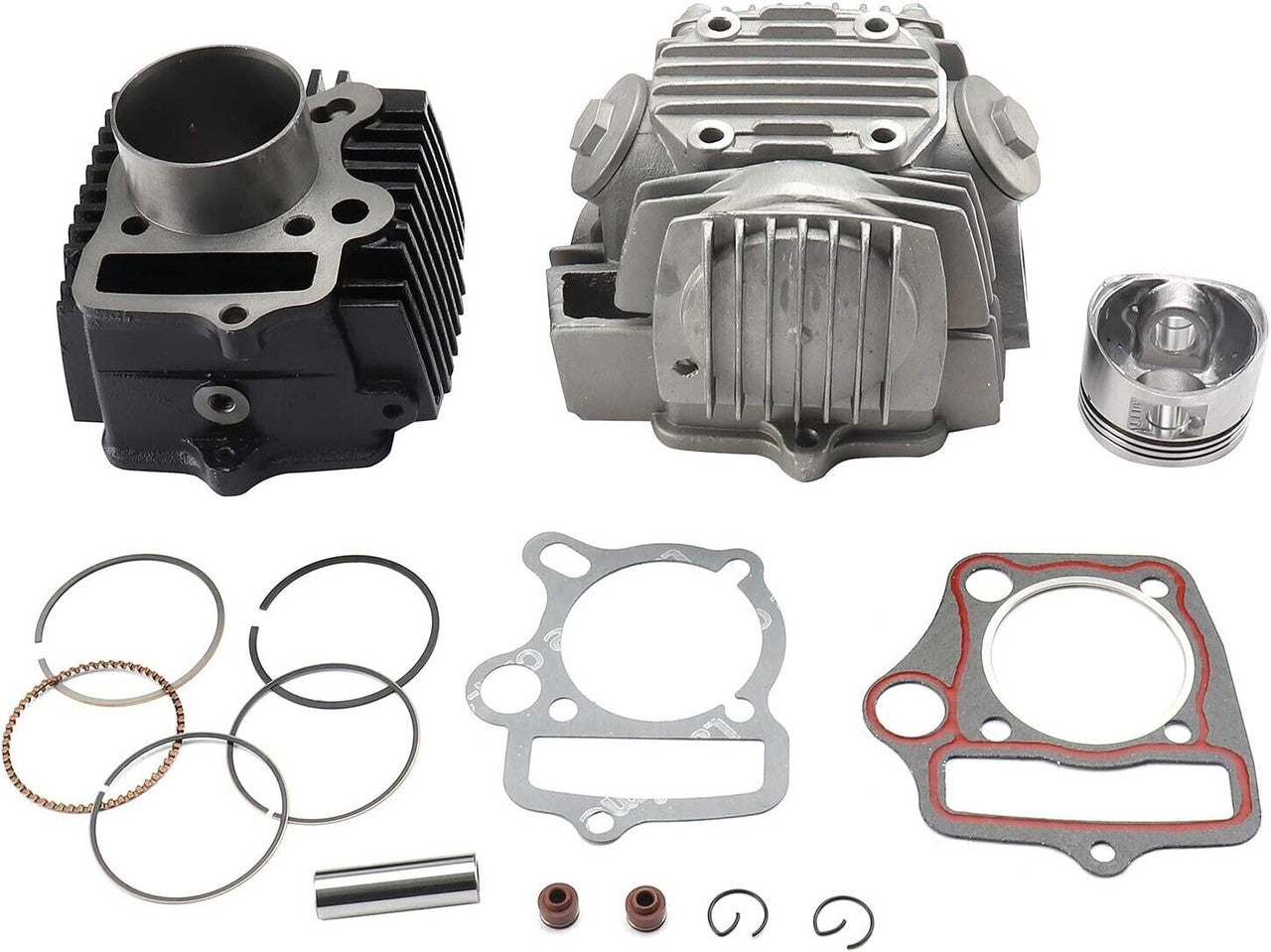

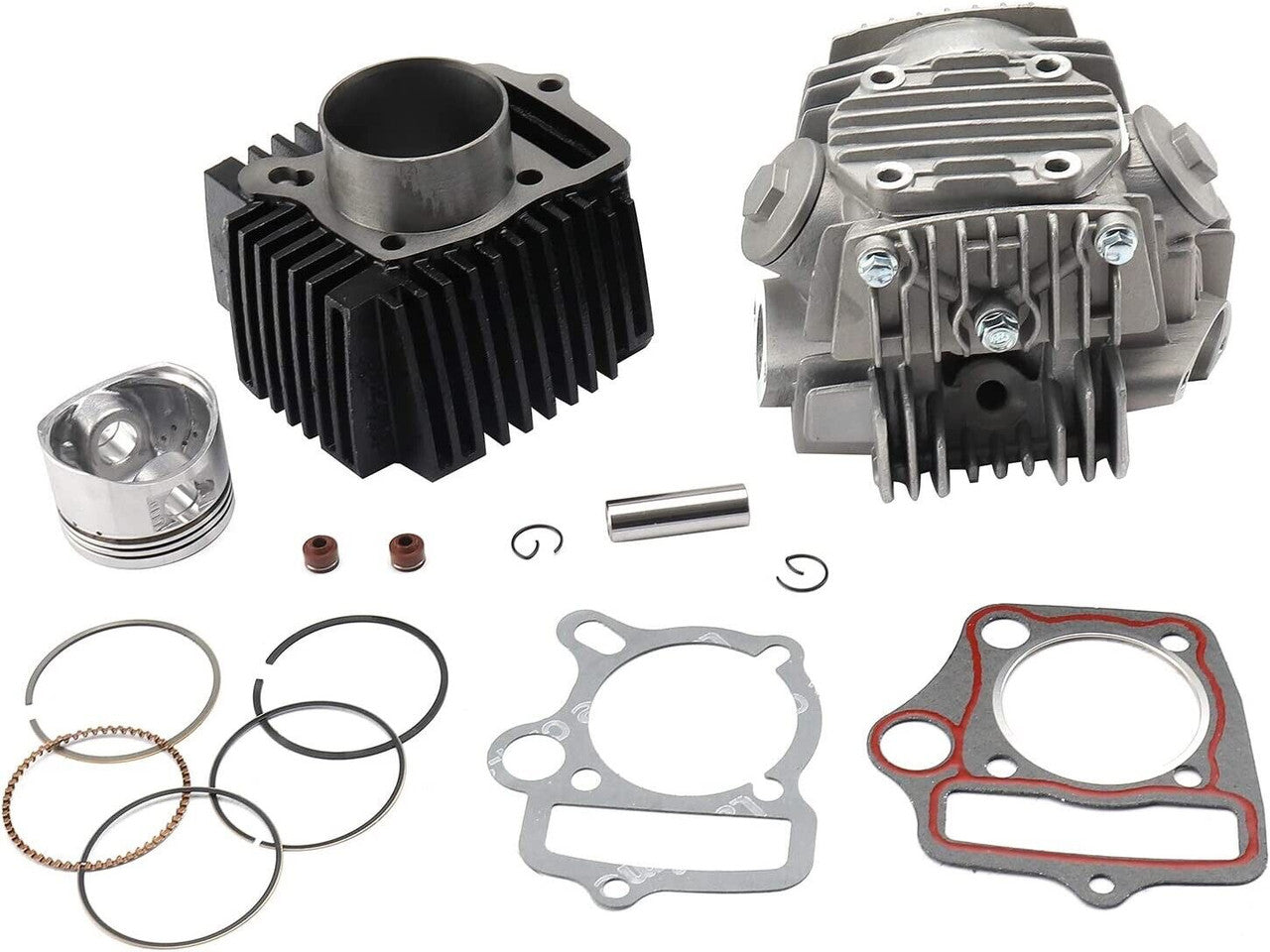

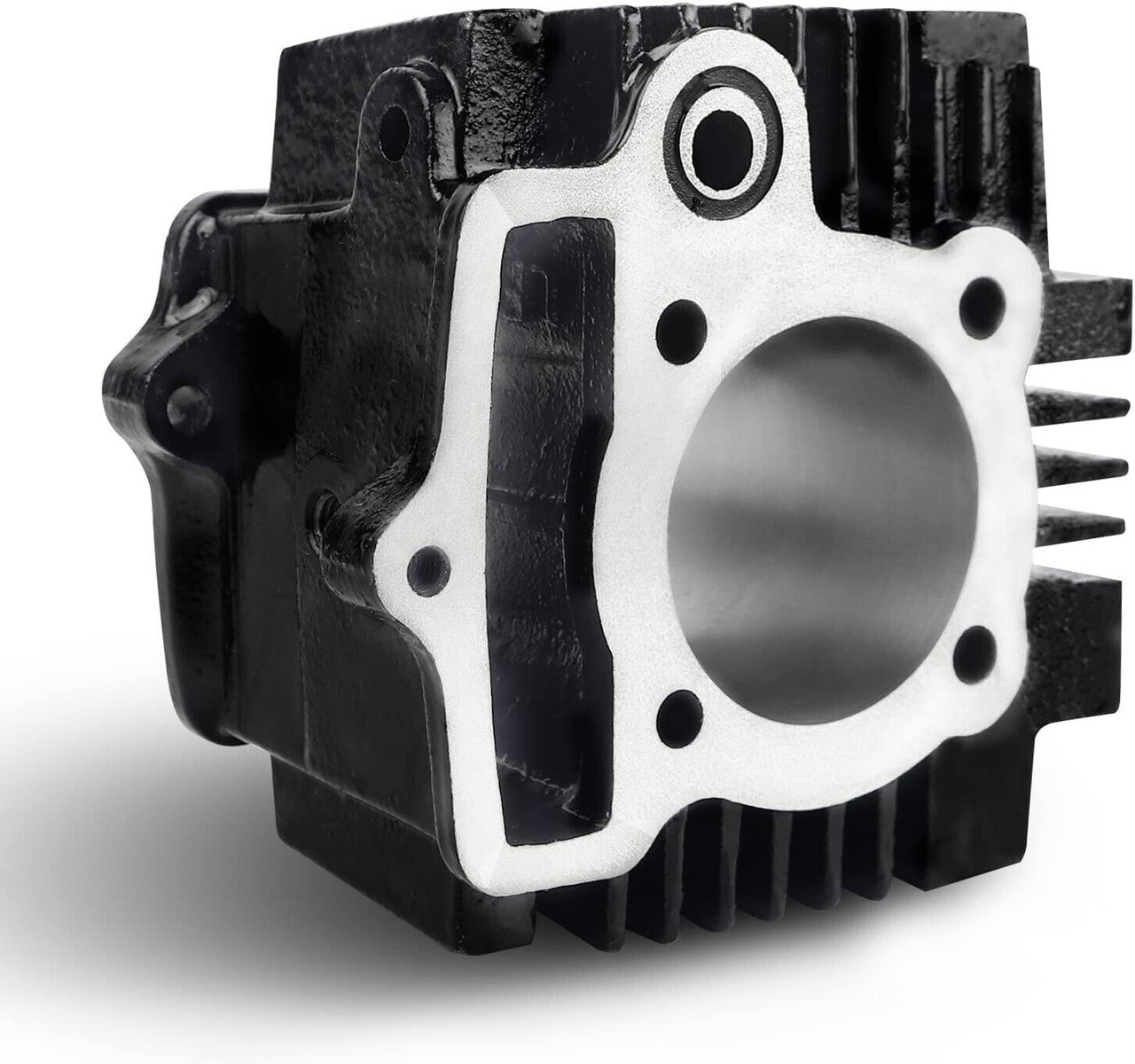

HORIZONTAL HONDA STYLE 4-STROKE CYLINDER AND HEAD KIT. KIT INCLUDES COMPLETE CYLINDER HEAD, CYLINDER, PISTON, RINGS, PISTON PIN, CIR CLIPS, HEAD GASKET, AND BASE GASKET. PLEASE NOTE: NOT ALL 125cc CHINESE BIKES COME WITH 125cc MOTORS SOME COME WITH 52.4mm (110cc) MOTORS. PLEASE BE SURE TO COMPARE MEASUREMENTS BEFORE PURCHASING THIS KIT 125cc CYLINDER BORE: 54mm 125cc CYLINDER STUD SPACING DIAGNAL: 69.5mm Cylinder Measurement:
Bore: 54mm
Bolt hole spacing CENTER TO CENTER: 48mm x 50mm
Piston kit Measurement:
Piston Height: 37mm
Piston Diameter: 54mm
Piston Pin Length: 41.6mm
Piston Pin Diameter: 13mm
Bore: 54mm
Bolt hole spacing CENTER TO CENTER: 48mm x 50mm
