SSP-G *47mm BORE* KYMCO 2-STROKE AIR COOLED BIG BORE CYLINDER KIT
Weight:3.2 kg
169-405SSP-G's 47mm 2-Stroke Air-Cooled Big Bore Cylinder Kit increases performance on 2T Kymco air-cooled piston ported bikes. See compatibility table below to ensure this product works with your ride.
NOTE: This product does not fit reed valve engines
Specifications:

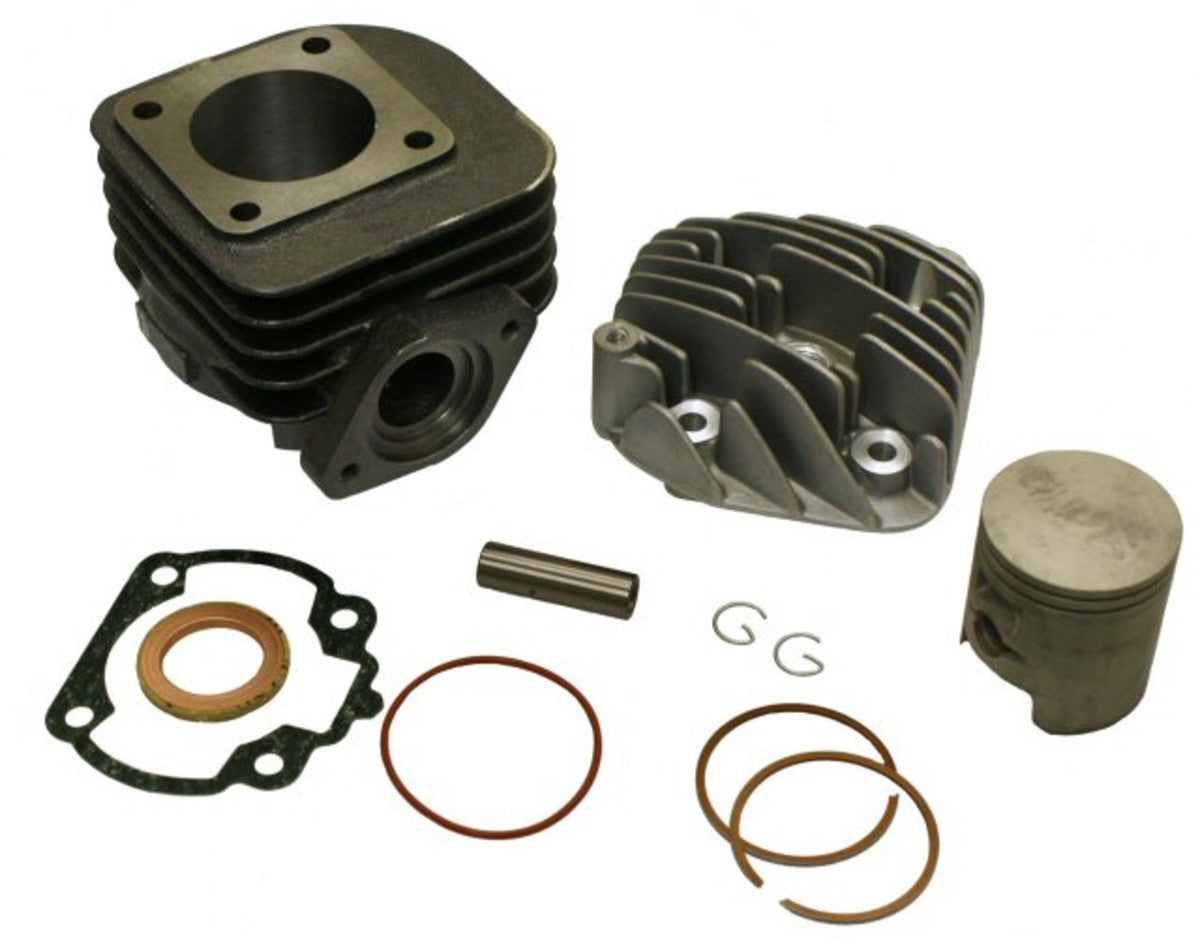

- Includes cylinder head, cylinder, piston, 12mm pin (not pictured), pin bearing, rings, circlips, head gasket, base gasket and exhaust gasket

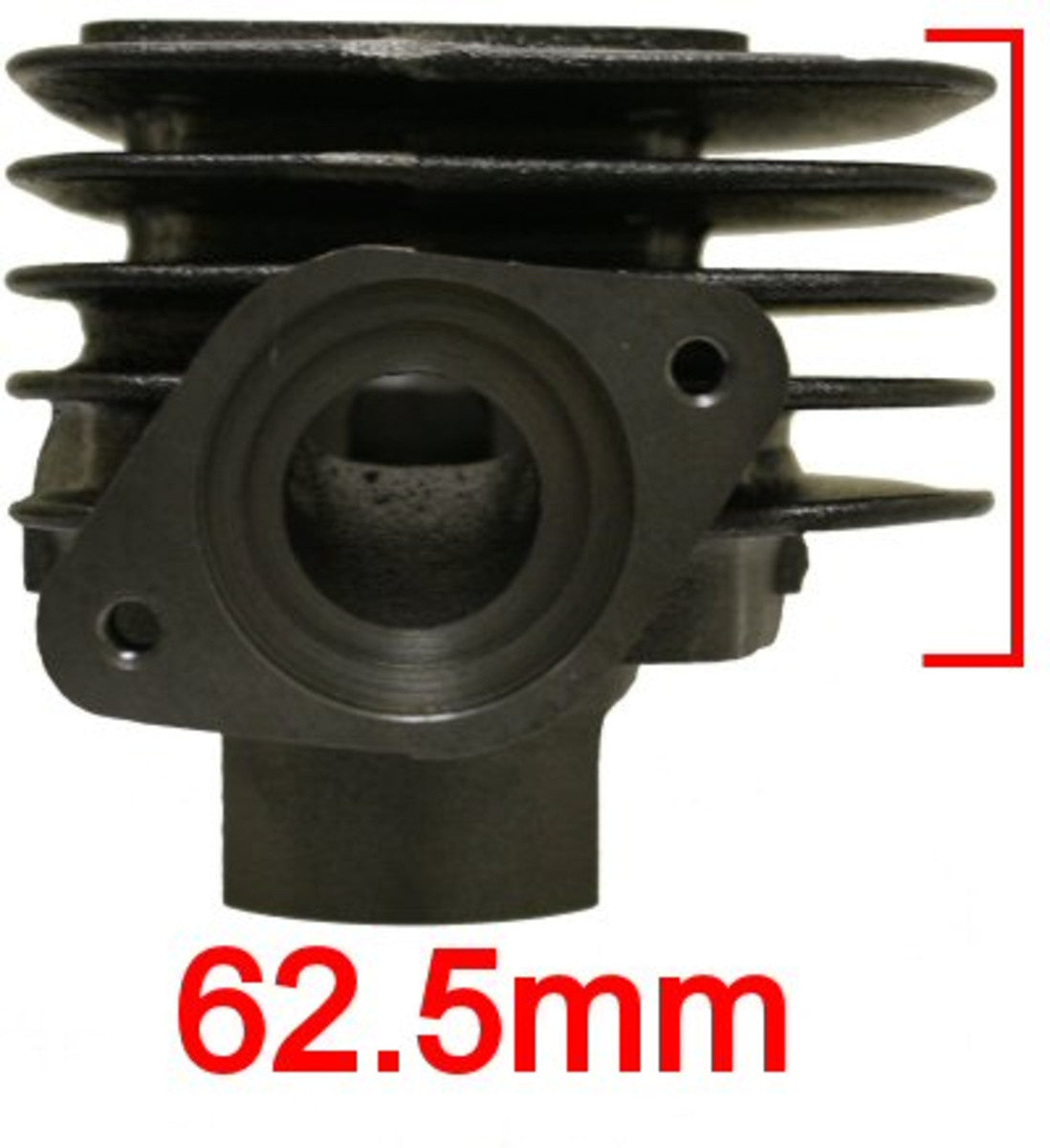

- Overall Height (cylinder): 90mm
- Wrist Pin Diameter: 12mm
- Wrist Pin Length: 40mm
- Wrist Pin Bearing I.D.: 12.5mm, O.D.: 16.8mm, Length: 14.45mm
- Piston Diameter: 46.9mm
- Does not fit reed valve engines
Compatibility:
| Kymco Agility 50 | Kymco Grand Dink 50 |
| Kymco Like 50 | Kymco People 50 |
| Kymco Super 8 50 | Kymco Super 9 50 |
| Kymco Top Boy (Cobra) 50 | Kymco Vitality 50 |
| Kymco Yup 50 | Kymco Yager (Spacer) 50 |
